Golf Simulator for Your Garage: Is Your Space Suitable? (UK Guide 2026)

You have been looking at golf simulators online, and the thought keeps coming back to the same place: the garage. It is the obvious choice. It is probably the biggest room you have access to, it is separate from the house, and nobody is parking a car in it anyway.

But here is the question most buying guides skip: is your garage actually suitable? Not every garage is. Some have ceilings too low, some are too damp, some lack the electrical supply to run the equipment safely, and some are just the wrong shape. Spending three to five thousand pounds on simulator equipment before properly assessing the space is a mistake that hundreds of UK golfers have made and regretted.

This guide is different from our step-by-step garage build guide, which walks you through the conversion process. This article comes before that. It helps you decide whether your garage is worth converting in the first place, what garage-specific challenges you need to plan for, which products are best suited to garage installations, and what a realistic garage simulator experience actually looks like.

Every measurement is in metres. Every price is in pounds. Every recommendation is based on the garages UK homeowners actually have — not the 6-metre-high American basements you see on YouTube.

UK Garage Dimensions: What You Are Actually Working With

Before anything else, you need to understand the space you have. UK garages come in standardised sizes that are significantly smaller than what most online simulator guides assume.

Typical single garage

A standard UK single garage measures approximately 2.4m wide x 4.9m deep x 2.4m high (7ft 10in x 16ft x 7ft 10in). Some are slightly wider at 2.7m or 3.0m depending on the era of construction, but the vast majority fall within these ranges. Post-war builds tend to be narrower. Properties built from the 1980s onward are more likely to hit the 3.0m width.

The critical measurements for a simulator are:

• Width: 2.4m is extremely tight for a golf simulator. At this width, you have no room for a full enclosure frame (the narrowest SimSpace SIM 1 is 3.0m wide). You would need a net-based setup or a freestanding impact screen. At 3.0m, a SIM 1 enclosure fits, though clearance is minimal
• Depth: 4.9m is workable with a camera-based launch monitor. After accounting for the screen gap (0.3m), enclosure frame (1.5m), and hitting zone (0.7m), you have roughly 2.4m behind your hitting position — more than enough for a camera-based unit, though tight for a radar-based monitor that needs 1.5-2.5m behind the ball
• Height: 2.4m is the single biggest challenge. Standard SimSpace enclosures are 2.5m tall, so they will not fit without modification. More importantly, 2.4m ceiling height restricts a full driver swing for anyone over about 170cm (5ft 7in)

Typical double garage

A UK double garage typically measures 5.2m wide x 4.9m deep x 2.4m high (17ft x 16ft x 7ft 10in). Some are deeper at 5.5m or even 6.0m, particularly on newer-build properties.

The double garage is a fundamentally different proposition:

• Width: 5.2m gives you room for a SIM 3 (3.3m wide) or SIM 4 (3.7m wide) enclosure with generous clearance on both sides — and enough remaining width for a small seating area beside the hitting bay
• Depth: Same considerations as the single garage. At 4.9m, camera-based monitors are comfortable; radar-based monitors are tight. At 5.5m+, any monitor type works
• Height: Same 2.4m ceiling challenge as the single garage, though double garages occasionally have higher ceilings if they were built with a pitched roof and no false ceiling

If you have a double garage, you are already in a strong position. The width gives you options that single-garage owners simply do not have. The remaining question is whether the depth and height work, and whether the environment is suitable.

For a detailed breakdown of exactly how much space each component requires, our room size guide covers every zone from screen gap to rear clearance. And our size and space planning guide goes deeper into enclosure selection based on your specific measurements.

The Five Garage-Specific Challenges

A garage is not a spare bedroom. It was built to store a car, not to house sensitive electronics and provide a comfortable environment for hours of use. Here are the five challenges that are unique to garage installations — and that many buyers discover only after the equipment has arrived.

1. Ceiling height

This is the garage simulator deal-breaker that stops more UK installations than any other single factor. At 2.4m, the ceiling is too low for a standard SimSpace enclosure (2.5m tall) and too low for a comfortable full driver swing for most adults.

The honest assessment:

Your height	Full driver swing at 2.4m ceiling?	Realistic outcome
Under 170cm (5ft 7in)	Possible with care	Workable — ceiling padding recommended
170-178cm (5ft 7in - 5ft 10in)	Borderline	Three-quarter backswing for driver, full swing for irons
178-185cm (5ft 10in - 6ft 1in)	No	Club will contact ceiling on driver backswing
Over 185cm (6ft 1in)	Definitely not	Even iron swings may clip the ceiling

What you can do about it:

• Remove a false ceiling: Many garages have plasterboard below the roof structure. Removing it can gain 10-20cm of usable height. Check what is above before you start
• Install ceiling padding: Foam gym tiles or acoustic panels on the ceiling protect both your club and the ceiling surface when contact occurs. Cost: £30-80
• Adapt your swing: A three-quarter backswing produces nearly identical launch conditions on a simulator. Most garage simulator owners adopt this naturally within a few sessions
• Use a net-based setup without a full enclosure frame: This eliminates the enclosure height requirement entirely. Hang an impact screen from the ceiling joists and use a freestanding frame or wall mounts at whatever height your ceiling allows

The ceiling height issue is manageable, but you need to go into the project with realistic expectations. If you are 183cm (6ft) tall and expect to make a full, uninhibited driver swing in a 2.4m garage, you will be disappointed. If you accept a slightly modified swing and some ceiling padding, you can have an excellent setup.

2. Dampness and condensation

This is the challenge that catches people out after installation. UK garages are prone to condensation, particularly from October through to April. The temperature inside an uninsulated garage closely tracks the outdoor temperature, and when warm, moist air from the house meets cold garage surfaces, water forms.

Why this matters: Condensation on a projector lens blurs the image. Moisture inside a launch monitor causes corrosion and unreliable data. Impact screens develop mould. Hitting mats grow mould on their underside when sitting on damp concrete. Every component in your setup suffers in a persistently damp environment.

The solution is environmental control, not just equipment protection:

• Insulate the walls and ceiling: 25-50mm rigid foam insulation boards (PIR or EPS) on the walls and ceiling. This raises the surface temperature above the dew point, dramatically reducing condensation. Budget £150-400 for a single garage
• Seal the garage door: Draught-proofing strips (£10-20) around the door edges, plus an insulation kit (£40-80) on the door's inner face
• Run a dehumidifier: A small compressor dehumidifier (£50-100) running on a timer keeps humidity below 60% even in the worst months. Running cost is negligible — roughly £0.05-0.10 per hour
• Heat before use: Switching on a 2kW heater 15-20 minutes before a session raises the air and surface temperature, preventing condensation from forming on cold equipment

If your garage already has visible mould, standing water, or a persistently damp floor, address these issues before installing any equipment. A garage with a damp-proof course failure or a rising damp problem needs professional remediation first — no amount of dehumidifiers will fix a structural moisture issue.

3. Temperature extremes

An uninsulated UK garage can drop to 2-5°C in winter and rise to 30°C+ in summer. In cold conditions, projectors produce dim output for the first 10-15 minutes, launch monitors with lithium batteries (including the Mevo Gen 2 and GC3S) may refuse to start below 5°C, and your own stiff muscles make practice unproductive. In summer, projectors and PCs can overheat in a poorly ventilated space.

The fix: Insulation handles both extremes. Add a 2kW panel heater (£80-150) for winter sessions and ensure adequate ventilation for summer. Running cost for a 2-hour winter session: roughly £0.70 at current UK electricity rates.

4. Power supply

Most UK garages have one or two 13A sockets on a spur from the house. The simulator equipment alone (projector + PC + launch monitor) draws well under 13A — but adding a 2kW heater to the same circuit will trip the breaker.

What you need: At minimum, confirm your existing circuit can handle the equipment. Ideally, have an electrician install additional double sockets (£80-150 per socket) and a dedicated radial circuit for the heater (£200-400). All garage circuits should have 30mA RCD protection. Use a registered electrician (NICEIC, NAPIT, or ELECSA) — all work must comply with BS 7671 and Part P of the Building Regulations.

5. Garage door and light leakage

A projector needs a dark environment. Garages leak light through the main door edges and any windows. Draught-proofing strips (which also reduce heat loss) block most door light. Blackout roller blinds (£15-30 per window) handle windows. Matt dark grey paint on the walls surrounding the screen reduces reflection and improves image contrast (£40-80 for two tins).

If your garage door faces south or west, afternoon summer sun may make projection unusable even with draught strips. In that case, a net-based setup with a tablet or 27-inch monitor (visible in any lighting) may be a better fit than a projector.

Assessing Your Garage: The 10-Minute Walkthrough

Before making any purchase decisions, spend 10 minutes in your garage with a tape measure and a notepad. This quick assessment will tell you whether your garage is a strong candidate, a workable candidate, or a non-starter.

Use a laser measure and record: width at the screen position (not the widest point), depth from screen wall to the garage door, and height at the hitting position (account for any door mechanism below the ceiling). Then walk the space noting obstructions — boiler (needs 60-100cm clearance), consumer unit (must stay accessible), pipework, and garage door tracks (up-and-over tracks reduce your effective ceiling height by 10-15cm).

Check for damp (water stains, mould, musty smell, damp walls at the base). Count the electrical sockets and note whether they are on a dedicated circuit or shared with the house.

Quick suitability assessment

Measurement	Strong candidate	Workable	Challenging
Width	3.3m+ (full enclosure)	3.0m (compact enclosure)	Under 2.7m (net only)
Depth	5.5m+ (any monitor)	4.5-5.5m (camera-based)	Under 4.0m (net + tablet)
Height	2.7m+ (full swing)	2.4-2.7m (adapted swing)	Under 2.3m (irons only)
Dampness	Dry year-round	Minor condensation (fixable)	Structural damp issue
Electrics	Multiple sockets, own circuit	1-2 sockets (upgradeable)	No electrics at all

If your garage falls mostly in the "strong" or "workable" columns, you are in good shape. If you have one or two "challenging" factors, they may be fixable with investment. If everything is in the "challenging" column, a garden room or indoor space might be a better option.

Best Golf Simulator Products for Garage Installations

Not all simulator equipment is equally suited to a garage environment. Here are the products that work best in the specific conditions UK garages present.

Best launch monitors for garages

For single garages (under 5m deep): A camera-based launch monitor is almost always the right choice. Camera-based units sit beside or just behind the ball, needing zero rear space. In a 4.9m single garage, this is the difference between a comfortable setup and one where you are pressed against the back wall.

The Foresight GC3S bundle (from £4,988) is the premium choice. The GC3S uses three high-speed cameras to measure ball speed, launch angle, spin rate, spin axis, and carry distance with photometric precision. It sits flush with the hitting mat — you could install it in a garage 4m deep and still have room to spare. The accuracy is exceptional, and it works flawlessly in the lower light conditions typical of a garage.

The FlightScope Mevo Gen 2 bundle (from £2,498) is the best value option. The Mevo Gen 2 is radar-based, which means it ideally wants 1.5-2.5m behind the ball. In a 4.9m garage, this works if you position the enclosure with minimal screen gap and place the monitor at the minimum recommended distance. It is tighter than a camera-based setup, but it is workable — and the Mevo Gen 2's accuracy, software compatibility, and included E6 Connect licence make it outstanding value. For garages 5.5m+ deep, the Mevo Gen 2 is completely comfortable.

For double garages (5m+ wide, 5m+ deep): Any launch monitor works in a double garage. The extra width and (often) extra depth remove the constraints that limit single-garage setups. If your budget allows, the GC3S delivers the best data. If value is the priority, the Mevo Gen 2 is hard to beat.

Best enclosures for garages

Enclosure choice is driven by your garage width and ceiling height:

Garage type	Garage width	Recommended enclosure	Why
Narrow single	2.4-2.7m	Net + freestanding screen	No standard enclosure fits at this width

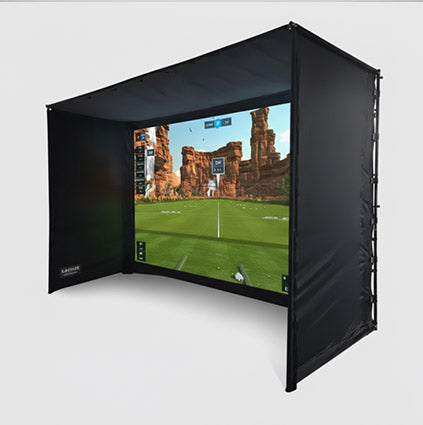

Standard single	2.7-3.0m	SimSpace SIM 1 (3.0m wide)	Fits with minimal side clearance — tight but workable
Wide single	3.0-3.5m	SimSpace SIM 1 or SIM 2	SIM 1 with comfortable clearance, or SIM 2 for a wider screen
Double	5.0-5.5m	SimSpace SIM 3 (3.3m) or SIM 4 (3.7m)	Room for a premium-width screen plus a social/seating area beside
Large double	5.5m+	SimSpace SIM 4 or SIM 5 (4.0m)	Full premium experience with generous clearance everywhere

If your ceiling is under 2.5m (which is most UK garages), consider removing the ceiling baffle from the enclosure and using the garage ceiling itself as the top containment. Alternatively, a net-based setup with a separate impact screen hung from the ceiling at whatever height works for your space eliminates the enclosure height constraint entirely.

Best mats for garages

In a garage, your hitting mat sits on concrete (ideally with rubber gym tiles between). The mat needs to absorb impact to protect your joints over hundreds of swings. Budget at least £199 for a mat — the difference between a quality mat and a cheap one is the difference between practising daily and giving up after a month with sore wrists.

Browse the full hitting mat range to find the right option for your setup.

What Does a Garage Simulator Actually Cost?

The total cost has two parts: preparing the garage and buying the equipment. Here is a realistic breakdown for UK garages in 2026.

Garage preparation costs

Item	Budget	Recommended
Insulation (walls + ceiling + door)	£150	£300
Additional sockets + dedicated heating circuit	£200	£400
Rubber gym tile flooring	£60	£120
Ceiling padding	£30	£60
Heater	£80	£150
Dehumidifier	£50	£80
Dark paint + blackout blinds	£50	£100
Total preparation	£620	£1,210

Equipment costs

Setup tier	Equipment	Price
Entry-level bundle	FlightScope Mevo Gen 2 bundle (SIM 1 enclosure, mat, E6 Connect)	From £2,498
Mid-range bundle	Foresight GC3S bundle (SIM 2 enclosure, mat, software)	From £4,988
Add projector	1080p short-throw projector + ceiling mount + HDMI	£400-£650
Add PC (if needed)	Gaming desktop for GSPro / E6 Connect	£600-£900

Realistic total for a single garage with Mevo Gen 2 bundle: £3,100-£4,300 (preparation + bundle + projector). Total for a double garage with GC3S bundle: £5,600-£7,750 (preparation + bundle + projector + PC).

For a full cost breakdown across every budget tier, our cost guide covers everything from £1,100 practice setups to £10,000+ premium builds.

Realistic Expectations: What Garage Golf Is Actually Like

Online videos show garage simulators in the best possible light. Here is what daily life with a UK garage simulator genuinely involves.

The benefits are substantial: year-round practice when every course is waterlogged, convenience (no driving to the range, no paying £10 per session), data-driven improvement with every shot tracked, and virtual course play on thousands of courses via GSPro and E6 Connect.

But be realistic about the compromises. It takes 10-15 minutes to get going on a cold evening — heater on, PC booted, software loaded. The ceiling will limit your driver unless your garage is unusually tall. Ball-on-screen impact noise is audible throughout the house. And a garage conversion, however well prepared, will always have a slightly industrial character rather than the premium feel of a purpose-built garden room.

Who should and should not convert their garage

A garage simulator is ideal if you practise at least twice a week, your garage is at least 3.0m wide and 4.5m deep, you are comfortable with a slightly adapted driver swing, and you do not need the garage for parking.

It is probably not right if your garage is under 2.7m wide, you have structural damp, your ceiling is under 2.3m, or you want a pristine entertainment space rather than a functional practice room.

If your garage is not suitable, a spare room can work for a net-and-tablet setup, or a garden room built to specification eliminates every compromise — though at a higher cost (£8,000-£15,000+ to build).

Next Steps: From Assessment to Build

If your garage scores well in the assessment above, the conversion follows a clear sequence: clear and clean, address any damp, insulate, sort the electrics, paint, floor, then install equipment. Our step-by-step garage build guide covers every stage in comprehensive detail, including exact costs, timelines, and common mistakes to avoid.

Frequently Asked Questions

Can I fit a golf simulator in a standard UK single garage?

Yes, if your garage is at least 3.0m wide and 4.5m deep. A standard UK single garage (2.4m x 4.9m) is too narrow for a full enclosure but can work with a net-based setup and a camera-based launch monitor. If your single garage is 3.0m wide — which many post-1980s garages are — a compact SimSpace SIM 1 enclosure fits, though side clearance is tight. The 4.9m depth is adequate for a camera-based launch monitor like the Foresight GC3S with room to spare.

How do I deal with dampness in my garage for a golf simulator?

Insulate the walls and ceiling with 25-50mm rigid foam boards (£150-400), seal the garage door edges with draught strips (£10-20), add a door insulation kit (£40-80), and run a dehumidifier (£50-100) when the space is not in use. Heat the garage for 15-20 minutes before each session to raise surface temperatures above the dew point. If your garage has structural damp or rising damp, address this professionally before installing any simulator equipment.

Is a 2.4m garage ceiling high enough for a golf simulator?

It depends on your height. At 2.4m, golfers under 170cm (5ft 7in) can make a full driver swing with care. Golfers between 170-180cm will need a three-quarter backswing for driver but can swing irons freely. Golfers over 180cm will clip the ceiling with a full driver backswing. Install ceiling padding (£30-80), adapt to a slightly shorter backswing, and consider removing any false ceiling for an extra 10-20cm. Many thousands of UK golfers use 2.4m garages successfully with these adaptations.

What is the best golf simulator for a UK garage?

For single garages, the FlightScope Mevo Gen 2 bundle (from £2,498) offers the best value — it includes everything you need and the Mevo Gen 2's E6 Connect licence means you have course play from day one. For garages where depth is limited, the Foresight GC3S bundle (from £4,988) is ideal because the camera-based GC3S needs zero space behind the ball. For double garages with more room, either bundle works excellently — your choice comes down to budget and how much accuracy you need.

How much does it cost to set up a golf simulator in a UK garage?

The total cost ranges from approximately £3,100 for a budget-prepared single garage with a Mevo Gen 2 bundle, to £7,750 for a well-prepared double garage with a GC3S bundle, projector, and PC. Garage preparation alone (insulation, electrics, flooring, heating, damp control) costs £620-£1,210. The simulator equipment (bundle, projector, PC) adds £2,500-£6,550 depending on the tier you choose. See our full cost breakdown for every budget level.

Making Your Decision

The garage is the most popular location for a home golf simulator in the UK for good reason — it offers more space than any room in the house, it is separate enough that noise is manageable, and for most homeowners, it is underused space waiting for a purpose. But base the decision on an honest assessment, not optimism. Measure carefully, check for dampness, and budget for the preparation work that transforms a cold storage space into a year-round practice room.

Start by browsing our complete simulator bundles to find the right package for your garage dimensions and budget. If your garage is on the smaller side, our practice nets and standalone launch monitors offer a space-efficient alternative. And when you are ready to start the build, our step-by-step garage build guide will walk you through every stage from clearing the space to hitting your first shot.
