Golf Simulator Display: Projector vs TV — Which Is Better for Your Setup?

We tested both projector and TV setups side by side in our demonstration room, comparing image quality, input lag, and overall immersion across multiple golf simulator software platforms. Every golf simulator needs a display, and for UK home setups the choice comes down to two options: a projector paired with an impact screen, or a large television mounted behind a net. Both approaches work, both have loyal advocates, and both have genuine advantages and disadvantages that depend on your room, budget, and priorities. This guide compares projectors and TVs for golf simulator use across every factor that matters, helping you make the right choice for your specific setup.

Image Size: Where the Golf Simulator Projector Wins

The single biggest advantage of a projector in a golf simulator setup is image size. A standard projector can fill an impact screen two to three metres wide with a bright, detailed image that creates an immersive wraparound experience. When you step up to the hitting position and see a life-sized fairway stretching out in front of you, the simulation feels remarkably convincing. This large-scale visual experience is the primary reason most dedicated golf simulator rooms use projectors.

By comparison, even the largest consumer televisions — seventy-five to eighty-five inches — provide a viewing area of roughly one point seven to one point nine metres diagonally. While this is a big screen by living room standards, it looks modest in a golf simulator context where you are standing several metres back from the display. The projected image advantage is not subtle — a two and a half metre wide projection is approximately twice the viewing area of a seventy-five inch TV, and the difference in immersion is immediately obvious.

For golfers building a dedicated golf simulator room where immersion is a priority, a projector is the clear winner on image size. For those using a TV as part of a multi-purpose room setup, the screen size limitation is a trade-off worth understanding upfront.

Image Quality: Where the Golf Simulator TV Wins

Televisions produce a superior image in terms of brightness, contrast, colour accuracy, and sharpness at a given screen size. A modern 4K television delivers vivid colours, deep blacks, and crisp detail regardless of ambient lighting conditions. You can use a TV-based golf simulator in a well-lit room without any image degradation — the picture looks as good with the lights on as with them off.

Projectors, by contrast, are affected by ambient light. A room that is not sufficiently dark will produce a washed-out projected image with reduced contrast and muted colours. Most golf simulator projector setups require either a darkened room (blackout blinds, no overhead lights on during play) or a high-brightness projector rated at three thousand lumens or more. Even with a premium high-lumen projector, the image quality in a bright room will not match a television. An ambient-light-rejecting (ALR) screen can help, but it adds cost and complexity.

For UK homes where the simulator room also serves other purposes — a garage that needs work lighting, a spare bedroom with windows, a garden room with glass panels — a TV avoids the light-control challenge entirely. Our projector guide covers brightness requirements in detail for different room conditions.

Cost Comparison for Golf Simulator Displays

A suitable projector for golf simulator use costs between seven hundred and one thousand five hundred pounds. This buys a unit with three thousand to four thousand lumens, full HD or 4K resolution, and a short-throw ratio that works in typical room depths. Bulb replacement adds fifty to one hundred and fifty pounds every two to four years depending on usage. An impact screen is required with a projector setup and adds one hundred to four hundred pounds depending on size and quality.

A suitable TV for golf simulator use — sixty-five to seventy-five inches — costs between five hundred and one thousand two hundred pounds. There are no ongoing costs for bulbs, and no separate screen is required. However, you still need a net or cage behind the TV to catch the ball (the ball hits the net, not the TV), and the TV itself needs protection from stray balls. A protective polycarbonate shield mounted in front of the TV is strongly recommended.

Total display cost is comparable between the two approaches when all components are included. The projector path has higher ongoing costs (bulb replacement) while the TV path has a lower ceiling for image size. Browse our impact screen collection for quality screens designed for projector-based setups.

Installation Complexity for Each Golf Simulator Display

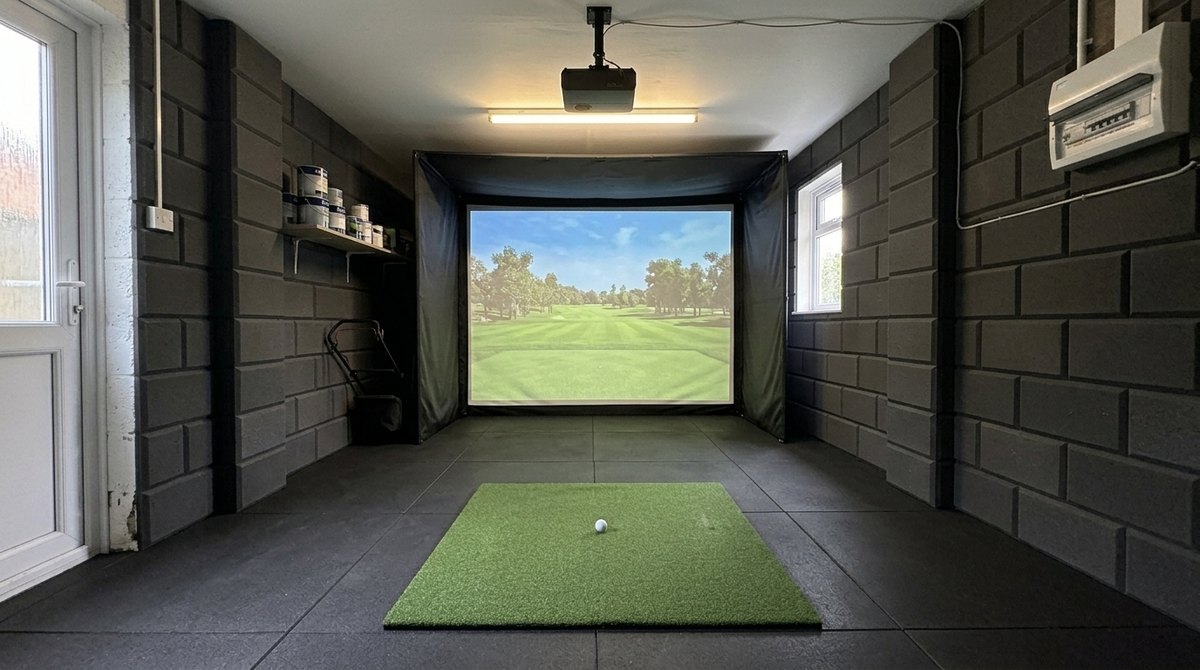

A projector requires ceiling or shelf mounting, alignment calibration to produce a square image on the screen, cable routing from the projector to the PC, and ongoing adjustments if the projector shifts position. Short-throw projectors reduce the mounting distance but require more precise alignment. Ultra-short-throw projectors can sit directly below the screen, simplifying mounting but adding cost.

A TV requires wall mounting or stand placement, a single HDMI cable from the PC, and a protective shield. Setup takes approximately thirty minutes to an hour and requires no calibration. If the TV is wall-mounted at the correct height, it works perfectly from day one with no adjustments needed. This simplicity is a genuine advantage for golfers who want a straightforward setup experience.

For permanent, dedicated golf simulator rooms, the projector installation effort is a one-time task that delivers the immersive large-format experience most golfers want. For multi-purpose rooms or temporary setups that need to be assembled and stored, the TV approach is significantly simpler. Our setup guide covers projector installation in step-by-step detail.

Ball Impact and Safety for Golf Simulator Displays

In a projector-based golf simulator, the ball hits the impact screen directly. The screen is designed for this — it absorbs the energy of the shot, protects the wall or projector behind it, and provides the projection surface. Mishits, shanks, and topped shots all hit the screen harmlessly. Side netting catches anything that misses the screen entirely. The projector is positioned behind or above the hitting area, safely out of the ball's path.

In a TV-based setup, the ball must never hit the television. Even with protective shields, a direct hit from a golf ball travelling at high speed can damage a TV. The setup typically involves a golf net or cage positioned between the golfer and the TV, with the TV visible behind or above the netting. The net catches all shots, and the TV sits safely behind it. This works well but means the net is visible in front of the image, which slightly reduces the visual immersion compared to a clear projected image on a screen.

For families with children who might use the simulator unsupervised, the projector-and-screen approach is inherently safer because there is no expensive TV in the path of the ball. The impact screen is designed to be hit repeatedly and is replaceable at modest cost. View our simulator packages which include properly matched screens and enclosures for safe play.

Which Golf Simulator Display Should You Choose?

Choose a projector if you have a dedicated golf simulator room that can be darkened, you want the largest possible image for maximum immersion, you are comfortable with the installation process, and you plan a permanent setup. The projector path is the standard for serious golf simulator installations and delivers the most convincing simulation experience.

Choose a TV if you have a multi-purpose room that needs to stay well-lit, you want the simplest possible setup with minimal installation, you prefer lower ongoing costs (no bulb replacement), or you are building a more casual setup where absolute immersion is less important than convenience. A seventy-five inch 4K TV behind a quality net provides a perfectly enjoyable golf simulator experience at a lower complexity level.

Many UK golfers start with a TV-based setup to test whether they will use the simulator regularly, then upgrade to a projector and impact screen once they are committed to the hobby. This progressive approach avoids a large upfront investment while proving the concept. Whichever path you choose, browse our simulator bundles for packages that include matched displays and enclosures. Read our complete buyer's guide for detailed guidance on every component of your setup, and compare launch monitors that pair with either display type.

Our most popular projector-based golf simulator packages pair premium launch monitors with matched enclosures and screens. The Foresight GC3s bundle includes a projector-ready enclosure with professional-grade impact screen. The FlightScope Mevo+ Gen 2 bundle provides the same enclosure quality at a more accessible price point. Both work equally well with projectors or TVs, giving you the flexibility to start with one display type and switch later.

Optimising Your Golf Simulator Display Experience

Regardless of whether you choose a projector or TV, several factors affect the visual quality of your golf simulator display. Room colour matters — dark walls and ceiling reduce light reflection that washes out projected images and reduces TV contrast. A matte paint finish in dark grey or charcoal on walls surrounding the screen area dramatically improves perceived image quality for both display types.

Display positioning affects the simulation experience. The centre of your screen or TV should be at approximately chest height when standing at the hitting position. Too high and you are looking up at the image, which feels unnatural. Too low and the perspective is distorted. For projector setups, this means positioning the screen carefully relative to the projector mounting point. For TV setups, use a wall mount that places the centre of the screen at the correct height.

Audio adds significantly to the immersion. A quality soundbar or small speaker system playing the simulation sound effects — ball strike, wind, birds, crowd noise — enhances the experience beyond what a silent display can provide. Most simulation software includes detailed audio that responds to your shot quality and the virtual environment. A speaker system costing fifty to one hundred pounds makes a noticeable difference to the overall golf simulator experience.

For cable management, both projector and TV setups benefit from tidy routing of HDMI, power, and network cables. Exposed cables across the floor create trip hazards and look untidy. Cable channels, conduit, or simple cable clips along skirting boards keep your golf simulator room clean and safe. Our setup guide includes a detailed section on cable management for both display types.

Resources like Projector Central provide throw distance calculators that help determine the correct projector model for your room dimensions.

Frequently Asked Questions

Can I use a projector in a room with windows?

Yes, but you will need blackout blinds or curtains to prevent ambient light from washing out the projected image. Alternatively, choose a projector rated at four thousand lumens or above, which produces a bright enough image to remain visible in moderately lit rooms. An ambient-light-rejecting screen also helps by directing projected light toward the viewer and rejecting light from other angles.

What size TV do I need for a golf simulator?

Sixty-five inches is the minimum recommended size for a golf simulator display. Seventy-five inches provides a noticeably better experience, and eighty-five inches is ideal if your budget and wall space allow. Anything below sixty-five inches feels small at the viewing distances typical in golf simulator setups and reduces immersion significantly.

Will a golf ball damage my TV?

A direct hit from a golf ball travelling at speed will almost certainly damage any consumer television. Always use a net or cage between the golfer and the TV, and consider a polycarbonate protective shield mounted in front of the screen. Never rely on accuracy alone to protect an unshielded TV — mishits happen to every golfer.

How long do golf simulator projector bulbs last?

Most modern projectors rated for golf simulator use have bulb life spans of three thousand to five thousand hours. At an average usage of five hours per week, that equates to twelve to twenty years before replacement. Replacement bulbs cost between fifty and one hundred and fifty pounds depending on the projector model. Laser projectors have even longer lifespans — twenty thousand hours or more — and eliminate bulb replacement entirely, though they cost more upfront.

Can I use a short-throw projector for a golf simulator?

Yes, and it is recommended. A short-throw projector can be mounted one to two metres from the screen rather than three to four metres, which saves room depth and reduces the shadow cast by the golfer. Ultra-short-throw projectors can sit on a shelf immediately below the screen, virtually eliminating shadow issues. Budget one thousand to two thousand pounds for a quality short-throw unit suitable for golf simulator use.
