Golf Simulator Impact Screens & Enclosures: What You Need to Know (2026)

Your launch monitor might be the brain of your simulator, but the impact screen and enclosure are the body. The screen is what you see — it catches golf balls travelling at up to 160 mph and simultaneously displays the projected simulation. The enclosure frames the screen, protects your walls and ceiling from mis-hits, and gives the whole setup a professional look.

Get these right and your simulator looks and feels like a commercial installation. Get them wrong and you'll spend weekends patching drywall, rehanging saggy screens, and apologising to your partner about the dent in the ceiling.

This guide covers everything UK golfers need to know about impact screens and enclosures: materials, sizes, mounting methods, projection quality, and honest recommendations at every budget level. If you're still at the planning stage, start with our UK buyer's guide. If you're working out space requirements, our room size guide explains the dimensions you need.

Impact Screens Explained

An impact screen serves two critical functions simultaneously: it absorbs the energy of a golf ball hit at full speed, and it acts as a projection surface for your simulation software. These are competing requirements — a screen tough enough to stop a ball needs to be soft and absorbent, while a screen bright enough for projection needs to be smooth and reflective. The best screens balance both.

Screen Materials

Woven polyester/nylon (baffle screens): The most popular material for home simulators. Multiple layers of tightly woven fabric absorb ball energy through controlled deformation — the screen flexes inward, slows the ball, and drops it to the mat. These screens handle projection well, producing a reasonably bright, clear image. They're durable, relatively quiet, and available at various price points.

Knitted screens: A variation on woven construction that uses interlocking loops rather than crossed threads. Knitted screens tend to stretch more on impact, creating a quieter catch with less ball bounce-back. The trade-off is that projection image quality can be slightly less crisp than on a tightly woven screen.

Commercial-grade archery screens: Originally designed for archery backstops, these multi-layered screens are extremely durable. They're thicker and heavier than standard simulator screens, making them excellent for high-traffic or commercial use. Projection quality is good, though the thicker material can slightly reduce brightness.

Screen Size Guide

Your screen size depends on your room dimensions and projector throw distance. Here's a practical guide for UK spaces:

Room Width	Recommended Screen Width	Screen Height	Best For
2.5–3m	2.5m (8ft)	2m (6.5ft)	Tight garages, spare rooms
3–3.5m	3m (10ft)	2.3m (7.5ft)	Standard UK single garages
3.5–4m	3.5m (11.5ft)	2.5m (8ft)	Double garages, garden rooms
4m+	4m+ (13ft+)	2.7m (9ft)	Dedicated sim rooms, commercial

Tip: Leave at least 15-20 cm between the screen edges and the walls/ceiling. The screen needs space to flex on impact — a screen stretched tight to the walls has nowhere to absorb energy and will wear out faster.

Projection Quality Factors

Not all impact screens are equal as projection surfaces. Key factors affecting image quality:

• Colour: White or light grey screens produce the brightest image. Dark screens absorb projector light and require a brighter (more expensive) projector
• Surface texture: Smoother screens produce sharper images. Heavily textured woven screens can show a slight fabric pattern in the projection
• Tension: A taut, wrinkle-free screen produces a flat image. Sagging or wavy screens distort the projection. Proper mounting and tensioning is essential
• Material weight: Heavier screens absorb more impact energy but may sag over time if not properly supported. Lighter screens stay taut longer but may allow more ball bounce-back

Impact Screens Available at OpenGolfer

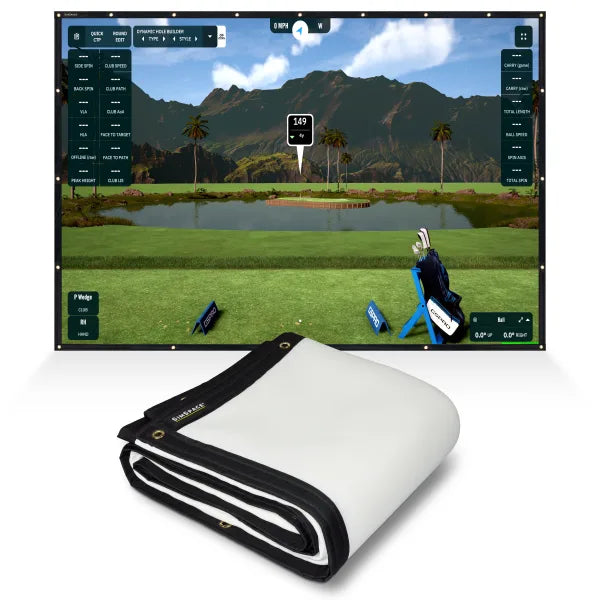

Budget: SimSpace Deluxe Impact Screen — £100

The SimSpace Deluxe Home Driving Net Impact Screen at £99.99 is our entry-level option. It's a solid starter screen for net-based setups where you're not projecting onto it — just using it as a ball-catching surface behind a practice net. It comes with 20 bungee cords for attachment.

Best for: Budget practice setups without a projector. Pair it with a practice net and launch monitor for a sub-£1,500 build.

Mid-Range: Close Knit Baffle Screen — £236

The Close Knit Baffle Golf Simulator Impact Screen at £236 is our most popular standalone screen. The close-knit construction balances durability with good projection quality. It's the sweet spot for home simulators where you want both ball-stopping power and a clear projected image.

Best for: Home simulator builds with projector setups. Compatible with most enclosure frames.

Mid-Range: Commercial Archery Baffle Screen — £286

The Commercial Archery Baffle Screen at £286 is our most durable option. Originally designed for archery, this multi-layered screen handles the hardest hits without flinching. It's heavier than the close-knit option, which means better energy absorption and less bounce-back.

Best for: High-use simulators, families with multiple players, anyone who prioritises durability over marginal projection quality gains.

Premium: GolfBays LITE Screen — £274

The GolfBays LITE Golf Simulator Impact Screen at £274 is designed specifically for projection quality. The material is optimised for bright, sharp image display while still handling full-speed ball impacts.

Best for: Simulators where image quality is the top priority.

Premium: GolfBays Pro+ Screen — £1,045

The GolfBays Pro+ Golf Simulator Impact Screen at £1,045 is a commercial-grade projection screen that delivers the best image quality in our range. If you're pairing a premium projector with a high-end launch monitor, this screen ensures the visual experience matches the investment.

Best for: Premium builds where projection quality is paramount. Pairs well with 4K projectors and Foresight/Full Swing KIT bundles.

SimBox-Specific: Close Knit Baffle for SimBox — £379

The Close Knit Baffle Screen for SimBox at £379 is cut and finished to fit the GolfBays SimBox enclosure precisely. If you own a SimBox, this is the matched replacement screen.

Foam Protection Accessories

Foam protection sits between the screen and the wall, absorbing residual energy and protecting your structure:

• Foam Layer Backing Screen — £189. Sits behind the impact screen to absorb energy before it reaches the wall. Extends screen life and reduces noise
• Foam Triangle Wedge Protection Pelmet — £149. Protects the top edge where topped shots and high hooks can damage the ceiling/wall junction
• DIY Impact Screen Pelmet Kit — £340. Complete foam border system that frames your screen with edge protection. Gives a clean, finished look while protecting walls and ceiling

Foam protection is optional but highly recommended, especially in garages where mis-hits can damage plasterboard or insulation behind the screen.

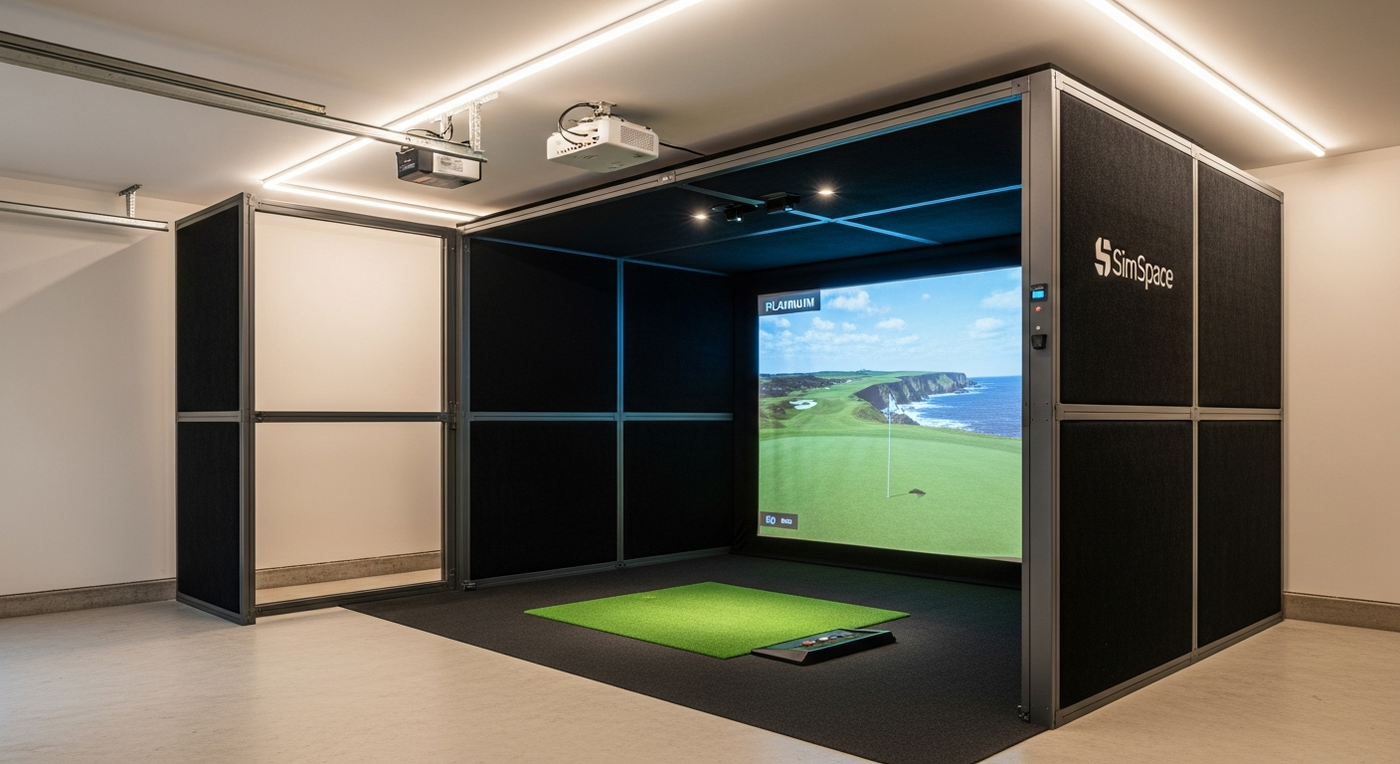

Enclosures Explained

An enclosure is the frame that holds your impact screen, contains side netting, and gives your simulator a professional structure. Think of it as the skeleton of your simulator — the screen attaches to it, side barriers prevent wayward shots from escaping, and the whole unit defines your hitting bay.

Types of Enclosure

Full-frame enclosures (recommended): A complete frame — typically aluminium or steel tube — that surrounds the hitting zone with a screen at the front, side netting/barriers on both sides, and sometimes a ceiling panel. These provide the most professional setup and best ball containment.

Screen-only mounts: Mount just the impact screen to the wall or a simple frame, without full side enclosure. Cheaper and simpler, but offers no protection from side mis-hits. Works if you're confident in your accuracy or have walls that can handle the occasional stray ball.

Cage-style enclosures: Open-frame cages (like golf practice cages) that use netting on all sides including the front. These are primarily for practice without projection — the net catches balls but you can't project through it. Add a screen to the back for a hybrid setup.

Enclosure Materials

Aluminium tube: Lightweight, rust-proof, and easy to assemble. Most home simulator enclosures use aluminium frames. They're sturdy enough for residential use and won't corrode in damp UK garages.

Steel box tube: Heavier and more rigid than aluminium. Steel frames are more robust and can support heavier screens without flexing. They're also better for permanent installations where the enclosure won't be moved. The trade-off is weight and the need for rust protection in damp environments.

Enclosure Size Guide

Enclosure Size	Room Required (Minimum)	Best For	Price Range
2.5m W x 2m H x 1.5m D	3m x 5m, 2.4m ceiling	Tight single garages	£800–1,200
3m W x 2.3m H x 1.5m D	3.5m x 5m, 2.5m ceiling	Standard garages, garden rooms	£1,000–2,000
3.5m W x 2.5m H x 2m D	4m x 5.5m, 2.7m ceiling	Double garages, dedicated rooms	£1,500–2,500
4m+ W x 2.7m+ H	4.5m+ x 6m+, 3m ceiling	Commercial-grade installations	£2,500+

Tip: Always leave 10-15 cm clearance between the enclosure frame and walls/ceiling for assembly access and airflow. An enclosure jammed tight to the walls is harder to install, maintain, and adjust.

Enclosures Available at OpenGolfer

GolfBays EasySim Enclosure — £999

The GolfBays EasySim at £999 is our entry point for full-frame enclosures. It's a complete frame with impact screen, side barriers, and everything needed for a proper simulator setup. The aluminium frame assembles without tools in most cases, and the screen tension system keeps the surface taut for clear projection.

Best for: First-time simulator builds on a budget. Available in multiple sizes to fit different rooms.

GolfBays SimBox Enclosure — from £1,214

The GolfBays SimBox from £1,214 is the most popular enclosure in the UK home simulator market. It's available in 7 sizes to fit rooms from compact single garages to large dedicated spaces. The SimBox includes free side barriers (worth £100), a quality impact screen, and a robust aluminium frame.

Why it's popular: The SimBox hits the sweet spot of quality, size options, and value. The 7-size range means there's a SimBox for almost every UK room. The frame is rigid enough for permanent installation but can be disassembled if you move house.

Best for: Most UK home simulator builds. The range of sizes makes it our default recommendation.

GolfBays Lux Enclosure — £1,995

The GolfBays Lux at £1,995 is the premium option. It features a more refined frame design, higher-grade materials, and better screen tension system than the EasySim or SimBox. The Lux is designed for golfers who want their simulator to look as good as it performs — cleaner lines, quieter ball catch, and a more polished overall appearance.

Best for: Premium builds in dedicated rooms or garden rooms where aesthetics matter as much as function.

Side Protection Options

• Golf Side Barrier for SimBox — £149 per pair. Additional side netting for SimBox enclosures
• Premium Side Nets for SimBox — £199.99 per pair. Heavy-duty side protection for high-use setups

Practice Cages: The DIY Alternative

If you're building on a budget or want an outdoor practice setup, practice cages offer ball containment without the projection capability of a full enclosure. They're excellent for net-only practice with a launch monitor and tablet.

Budget Cages

• linkscube Lofi Golf Cage — £299.99. 3m x 3m x 3m basic cage for practice use
• linkscube Portanet Golf Cage — £299.99. 3m x 3m x 3m portable cage that folds for storage
• GolfBays Full Swing Practice Cage — £299. 3m x 3m x 3m steel-frame cage
• Forza Golf Practice Cage — £459.99. 3m x 3m x 3m robust cage

Mid-Range Cages

• linkscube Phantom Golf Cage — £699.99. 3m x 3m x 3m steel frame with upgraded netting
• linkscube XL Golf Cage — £840. 3m x 3m x 3.8m extended depth for more swing clearance

Premium Cages

• linkscube Pro Golf Cage — £1,249. 3m x 3m x 3m steel box tube construction with archery-grade baffle net
• Forza Foldable Concertina Golf Cage — £1,499.99. 3m x 3m x 3.8m foldable design for easy storage
• linkscube Max Integrated Cage — £1,899.99. 3m x 3m with integrated tee turf and putting green
• linkscube Sim Studio Golf Cage — £2,649. Premium outdoor-ready cage

Complete Simulator Bundles: Enclosure Included

The simplest way to buy an enclosure is as part of a complete simulator bundle. Every bundle in our range includes a matched enclosure, impact screen, hitting mat, and all accessories — you don't need to worry about compatibility.

Bundle	Price	Enclosure Included	Launch Monitor
FlightScope Mevo Gen 2 Bundle	From £2,498	SimBox with screen	Mevo Gen 2
Foresight GC3S Bundle	From £5,289	SimBox with screen	GC3S
Golfzon WAVE Bundle	From £4,800	SimBox with screen	Golfzon WAVE
Foresight GC3 Bundle	From £8,959	SimBox with screen	GC3
Full Swing KIT Bundle	From £7,999	Premium enclosure	Full Swing KIT
Foresight GCQuad Bundle	From £18,359	Premium enclosure	GCQuad

Buying a bundle saves money versus buying components separately and guarantees everything fits together. For most UK builds, this is the recommended approach.

DIY vs Pre-Built: Which Approach?

Pre-Built Enclosures (Recommended for Most)

Pros:

• Designed and tested for golf simulator use
• Screen tension systems ensure flat projection surface
• Side barriers and frame components are matched
• Assembly instructions and support available
• Resale value if you upgrade later

Cons:

• More expensive than DIY
• Fixed sizes may not perfectly match unusual room dimensions

DIY Enclosures

Pros:

• Custom-sized to your exact room dimensions
• Potentially cheaper (materials only)
• Satisfaction of building it yourself

Cons:

• Screen tensioning is difficult to get right
• No side barriers unless you fabricate them
• Structural rigidity depends entirely on your build quality
• Time-intensive — most DIY builds take a full weekend or more

For most UK golfers, a pre-built enclosure like the GolfBays SimBox offers the best balance of quality, convenience, and value. Save the DIY energy for insulating your garage (see our garage build guide).

Installation Tips

Screen Tensioning

A properly tensioned screen is essential for both ball catch and projection quality. The screen should be taut enough to show a flat surface for projection but loose enough to flex and absorb ball energy. Most enclosures use bungee cords or elastic ties to achieve this balance — follow the manufacturer's instructions carefully and adjust after a few sessions as the material stretches slightly.

Projector Alignment

Mount your projector behind the hitting position, aimed at the centre of the screen. Use the projector's keystone correction to square up the image if the projector isn't perfectly centred. Short-throw projectors mounted on the ceiling 1-2 metres behind the ball position produce the best results for most UK setups.

Floor Protection

Place rubber gym tiles or a protective mat under and around the hitting area. This protects your floor from divots (especially on concrete garage floors) and provides a stable, level surface for your hitting mat and launch monitor.

Lighting

Reduce ambient light for the best projection quality. In garages, block windows with blackout material or curtains. LED strip lighting behind or beside the screen (not in front of it) provides ambient illumination without washing out the projection.

Our Honest Take

• Buy a bundle if you can. The enclosure, screen, mat, and launch monitor are designed to work together in our simulator bundles. Mixing and matching components is possible but adds complexity and can cost more
• The SimBox is our default recommendation for standalone enclosures. Seven sizes, proven quality, and the included side barriers make it the most practical choice for UK garages and garden rooms
• Don't cheap out on the screen. The impact screen is the component you see and interact with every session. A quality screen (£236+) delivers noticeably better projection and lasts longer than budget options. The Close Knit Baffle Screen is our sweet spot recommendation
• Foam protection is worth it. The foam backing and pelmet protection add £150-350 to your build but save your walls, extend screen life, and reduce noise. Budget for them from the start
• Measure twice, buy once. Use our room size guide to confirm your space can accommodate your chosen enclosure size with proper clearance

Frequently Asked Questions

What is the best golf simulator impact screen?

For most UK home simulators, the Close Knit Baffle Screen (£236) offers the best balance of durability, projection quality, and value. For premium projection, the GolfBays Pro+ Screen (£1,045) is the best available.

How long does a golf simulator impact screen last?

A quality impact screen typically lasts 3-5 years with regular home use (3-4 sessions per week). Lifespan depends on ball speed, frequency of use, and whether foam backing is used. Screens with foam backing behind them last longer because less impact energy transfers to the screen material.

What size enclosure do I need?

Match your enclosure to your room width minus 30-40 cm for clearance. Most UK single garages (3m wide) suit a 2.5-3m wide enclosure. Standard ceiling heights of 2.4m work with enclosures up to 2.2m tall. See our room size guide for detailed dimensions.

Can I use a golf simulator without an enclosure?

Yes, but it's not recommended. Without an enclosure, you need to mount the screen directly to a wall frame and accept that mis-hits will escape. A practice cage with a net is a safer alternative for projection-free setups. For proper simulator use with a projector, an enclosure is the standard approach.

What's the difference between an impact screen and a projection screen?

An impact screen is designed to absorb golf ball impacts AND serve as a projection surface. A standard projection screen (like a cinema screen) cannot withstand ball impacts and would be destroyed immediately. Never use a regular projection screen for golf simulation.

Do I need side barriers?

Side barriers are highly recommended. Even experienced golfers hit occasional shanks and hooks that go sideways. Side barriers contain these shots and protect your walls, windows, and anyone standing nearby. The SimBox enclosure includes free side barriers.

Can I project onto any impact screen?

You can project onto most impact screens, but image quality varies. White or light grey screens produce brighter, clearer images. The Close Knit Baffle Screen and GolfBays LITE Screen are specifically optimised for dual use (impact + projection).

How much does a complete enclosure setup cost in the UK?

A complete enclosure with screen costs £999-2,000 for most UK home builds. Add £150-350 for foam protection accessories. Our simulator bundles include the enclosure in the total price, typically saving 10-15% versus buying components separately.

Ready to choose your enclosure? Browse our simulator bundles for matched packages, or explore enclosures and screens individually. For the complete setup picture, read our UK buyer's guide and cost breakdown.
