Golf Simulator Mat Positioning: Distance, Angle and Height Guide (2026)

Mat positioning might seem like a minor detail in a home golf simulator setup, but it is actually one of the most critical factors affecting both accuracy and playability. The position of your hitting mat relative to the impact screen, launch monitor, and projector determines whether your launch monitor reads shots correctly, whether your projected image looks right from your standing position, and whether your swing feels natural or cramped. Get the mat position wrong and you will fight against inconsistent readings, awkward sight lines, and premature mat wear that costs money to replace. In this guide, we cover every aspect of mat positioning for UK home golf simulator setups, from the basic measurements to the fine-tuning that separates an adequate setup from an excellent one.

Understanding Home Golf Simulator Mat Positioning Fundamentals

Your hitting mat occupies a specific position in the overall simulator geometry, and that position is determined by several interrelated factors. The mat must be far enough from the impact screen to allow a full swing without the club contacting the screen on the follow-through, yet close enough to maximise the usable room depth behind you. The ball position on the mat must be precisely aligned with your launch monitor detection zone. The mat height must be compatible with your launch monitor mounting position. And the mat orientation must be squared to the screen so that straight shots hit the screen centre rather than angling off to one side. Getting all of these factors right simultaneously requires methodical planning and measurement.

The good news is that once you establish the correct mat position, it rarely needs to change. Most simulator owners mark the position permanently on the floor using tape, paint, or alignment guides built into the surrounding flooring. This means the initial setup effort pays dividends for years of consistent, accurate play. Let us work through each positioning factor systematically.

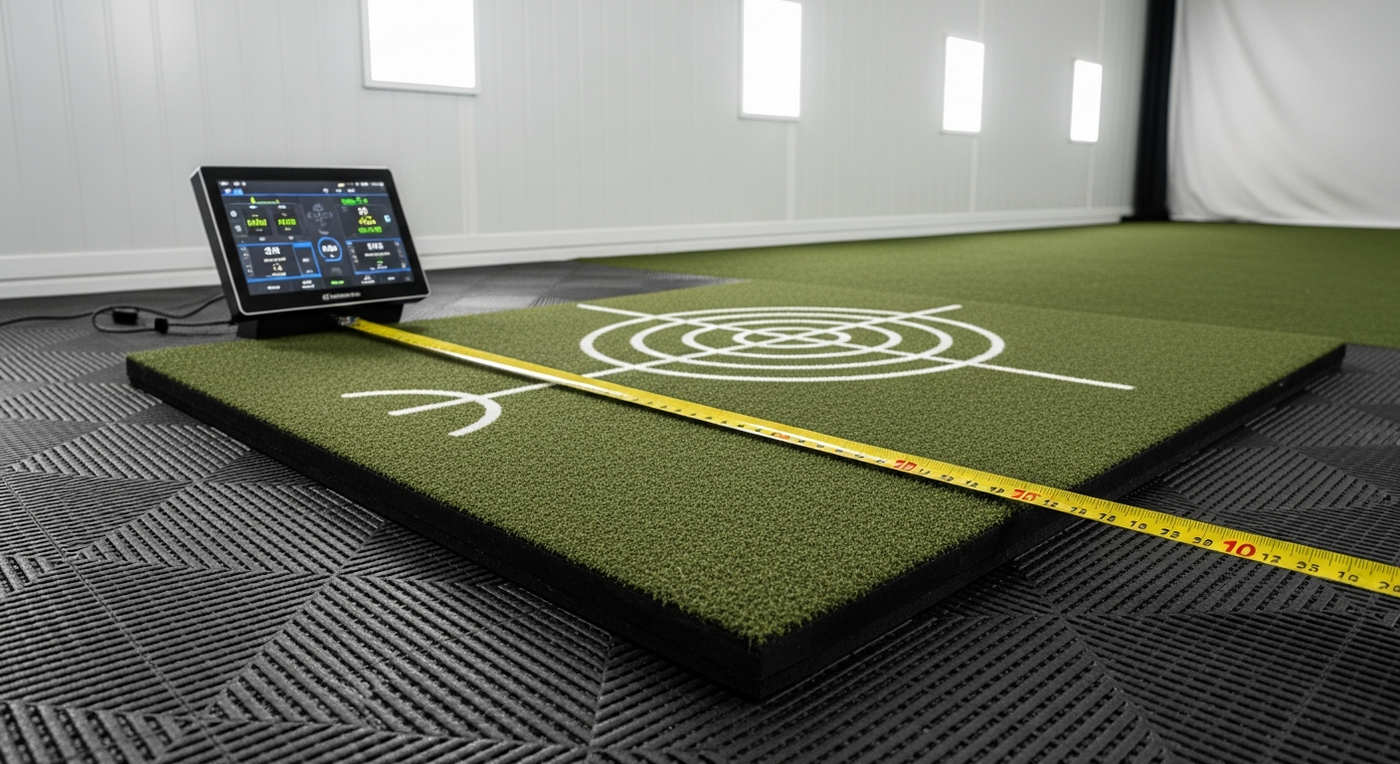

Distance From Mat to Impact Screen

The distance between the front edge of your hitting mat and the impact screen is one of the most important measurements in your setup. Too close and you risk hitting the screen with your club, damaging both the screen and your equipment. Too far and you waste valuable room depth that could be used for a more comfortable standing position. The minimum safe distance depends on your swing length and the clubs you use, but a general guideline is to position the mat so the ball is at least 2.5 metres from the screen for irons and at least 3 metres from the screen if you will be hitting driver regularly.

Measure from the ball position on the mat, not from the front edge of the mat. The ball position is typically twenty to forty centimetres back from the front edge, depending on the mat design. After measuring, stand on the mat and take slow practice swings with your longest club to verify that there is comfortable clearance between the club and the screen at full extension. Remember that your divot pattern moves the effective impact point forward of the ball position, so allow a few extra centimetres of clearance beyond what feels sufficient during a static check. For rooms that are tight on depth, our room size guide includes minimum distances for different setup configurations.

Mat Alignment With the Launch Monitor

The alignment between your mat and launch monitor is critical for consistent shot detection and accurate data capture. Camera-based launch monitors like the Foresight GC3 and GC3s sit beside or just in front of the ball and need the ball at a precise position within their camera field of view. Radar-based units like the FlightScope Mevo+ sit behind the golfer and need the ball at a specific distance in front of the unit, with clear line of sight along the ball flight path.

For camera-based units positioned on the floor beside the mat, the ball position must match the exact coordinates specified in the manufacturer documentation. This is typically measured from the front face of the launch monitor to the ball centre, and from the launch monitor centreline to the ball position laterally. Even a two-centimetre deviation can cause intermittent tracking failures or inaccurate readings. Use the alignment aids provided with your launch monitor, or create your own using a small dot or cross mark on the mat surface at the exact required position. For radar-based units behind you, measure the distance from the unit front face to the ball position carefully, and ensure the unit is centred on the ball target line, not offset to either side.

Optimal Tee Position on Your Hitting Mat

Where you place the tee on your mat affects both the launch monitor reading and your ability to make a natural swing. Most quality simulator mats include a dedicated tee position marked or built into the mat surface. If your mat does not have a designated tee position, or if you want to use a rubber tee insert, position it so the ball sits within the launch monitor optimal detection zone when teed up. This is slightly different from the iron ball position on some mats because the teed ball is further forward in the stance and at a different height.

For mats with multiple tee holes, select the one that best matches your launch monitor requirements. If in doubt, start with the tee position closest to the centre of the mat and test several driver shots to verify consistent tracking. Tee height matters too: set your tee height so that approximately half the ball is visible above the driver crown at address, just as you would on the course. Tees that are too high or too low produce atypical launch conditions that reduce the relevance of your practice data. Quality rubber tee inserts from simulator suppliers maintain a consistent height better than cheap alternatives that compress or break down after a few sessions.

Mat Height and Level Considerations

The height of your mat surface relative to the floor and the launch monitor affects measurement accuracy and swing feel. Most hitting mats raise the ball between 15 and 30 millimetres above the surrounding floor surface. If your launch monitor sits on the floor beside the mat, this height difference is already accounted for in the manufacturer setup guidelines. However, if you add additional flooring around the mat, such as foam tiles or rubber matting, ensure the launch monitor sits at the correct relative height. A launch monitor that is too high or too low relative to the ball produces systematic errors in launch angle and spin measurements.

Level is equally important. Use a spirit level to check that your mat is perfectly flat in all directions. An uneven mat surface tilts the ball position and alters the effective lie angle, which affects both the launch monitor reading and your swing mechanics. If your garage floor has a slope, which is common in UK garages designed for water drainage, shim the mat with thin plywood or purpose-made levelling strips until the surface reads level. Some premium mats include adjustable feet for this purpose. Our hitting mat guide reviews mats with built-in levelling features suitable for uneven UK garage floors.

Angle and Orientation of the Mat Relative to the Screen

Your mat must be oriented so that a straight shot from the primary hitting position strikes the centre of the impact screen. This sounds obvious, but in practice many setups have subtle misalignment that causes straight shots to appear as pulls or pushes in the simulation. Stand on the mat in your address position and extend a club shaft along your target line toward the screen. The shaft should point at the centre of the screen. If it points left or right of centre, rotate the mat slightly until alignment is correct.

Similarly, check that the mat is not angled upward or downward toward the screen. An uphill lie toward the screen changes the effective launch angle of every shot, whilst a downhill lie does the opposite. The mat surface should be perfectly level relative to the screen face, not tilted toward or away from it. If your floor has a natural slope toward the screen (common in garages with drainage slopes toward the door), you will need to level the mat using shims or adjustable feet. This is the single most overlooked positioning factor in DIY simulator installations, and correcting it often resolves mysterious accuracy issues that resist other troubleshooting efforts.

Managing Mat Wear and Rotating Positions

Hitting hundreds or thousands of shots from the same position on a mat creates wear patterns that degrade both the mat surface and your launch monitor accuracy over time. The primary hitting zone develops compressed, worn fibres that present the ball at a slightly lower height than the surrounding mat surface. This progressive change introduces a gradual drift in accuracy that can go unnoticed until the mat is severely worn. High-quality mats resist wear longer, but all mats eventually develop wear patterns in the primary strike zone.

To extend mat life and maintain consistent accuracy, rotate the mat position periodically so you distribute wear across a larger area. Some mats are designed with multiple hitting positions specifically for this purpose. If your mat has a single primary position, rotating it 180 degrees shifts the wear zone to a fresh area. Track your total shots or hours of use and establish a rotation schedule, typically every few hundred full swings. When the primary hitting zone shows visible wear, with compressed fibres and visible backing material, it is time for replacement regardless of how old the mat is. A worn mat is a false economy: it degrades accuracy, affects swing feel, and can even cause injury if the ball sits unstably on the damaged surface.

Floor Preparation and Surrounding Surface

The floor around your hitting mat deserves attention too. A stable, level floor surface prevents the mat from shifting during play and provides safe, comfortable footing. Most UK garage floors are bare concrete, which works well as a foundation but can be cold and hard underfoot. Surrounding the hitting mat with interlocking foam tiles or rubber gym flooring provides warmth, comfort, and cushioning that makes longer practice sessions more pleasant. Ensure the surrounding flooring is the same height as the mat base, or transition smoothly to a different height, to prevent tripping hazards.

If your concrete floor is dusty or sealed with a smooth finish, the hitting mat may slide during use. Anti-slip matting or rubber furniture pads underneath the mat prevent this, and they also provide a small amount of vibration dampening that benefits nearby launch monitors. Double-sided carpet tape is another option for keeping the mat fixed in position on smooth surfaces. For garages with painted or epoxy-coated floors, test adhesion before committing to permanent tape solutions, as some adhesives can damage floor coatings when removed. Our room setup guide includes flooring recommendations for different UK simulator room types.

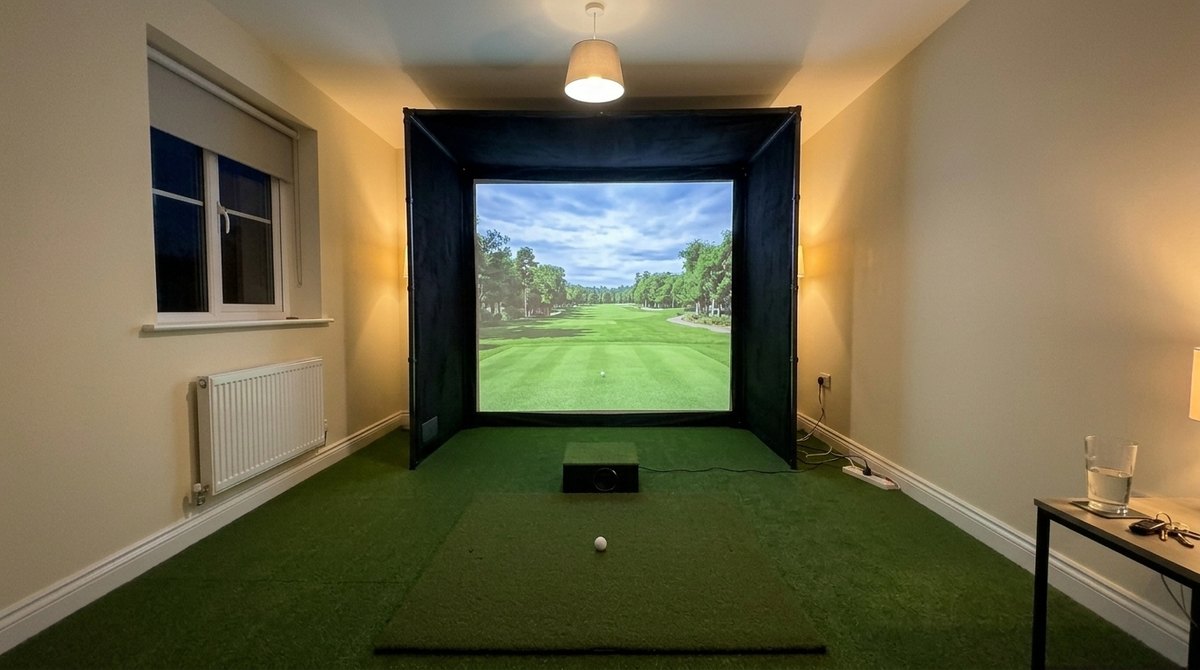

Positioning for Different Home Golf Simulator Room Layouts

Every UK home golf simulator room has unique characteristics that affect optimal mat positioning. In a single garage (approximately 3 metres by 5 metres), the mat typically sits about 2.5 metres from the screen, leaving 1.5 to 2 metres behind the ball for the golfer stance and backswing. In a double garage or dedicated room (approximately 4 metres by 6 metres or larger), you have more flexibility to increase the screen-to-mat distance and create a more spacious, comfortable hitting area. In a spare bedroom conversion (typically 3 metres by 4 metres), space is at a premium and every centimetre of positioning matters.

For tight rooms, consider a narrower mat that maximises the usable depth of the room. A mat that extends unnecessarily far forward wastes depth that could provide more comfortable standing space behind the ball. Some golfers in very tight rooms use a mat that sits flush against the side wall, hitting from one end rather than the centre, to maximise the distance to the screen. This is a valid approach if your launch monitor can accommodate the offset ball position. Our room size guide includes specific mat positioning recommendations for different UK room dimensions and layouts, with diagrams showing optimal component placement for each scenario.

Choosing the Right Home Golf Simulator Mat for Your Setup

Mat selection and positioning go hand in hand. The best mat for your setup depends on your room dimensions, launch monitor type, and budget. Our simulator bundles include mats that are pre-matched to the included launch monitor, with positioning guidance specific to each combination. The Foresight GC3 bundle and FlightScope Mevo+ bundle each include mats with integrated alignment features designed for their respective launch monitor types, removing the guesswork from positioning. Browse our full golf simulator collection to see the range of bundle and component options available for UK golfers.

Proper mat positioning is a fundamental part of getting the most from your home golf simulator investment. Take the time to measure, level, and align your mat correctly during initial setup, mark the position permanently, and maintain the mat surface through regular rotation and timely replacement. Your accuracy, comfort, and overall simulator experience will all benefit significantly from this attention to detail. For more on choosing and setting up every component of your simulator, read our complete UK golf simulator buyer's guide for 2026.

Frequently Asked Questions

How far should the hitting mat be from the impact screen?

The ball position on the mat should be at least 2.5 metres from the impact screen for irons and at least 3 metres for driver. This provides sufficient clearance for a full swing follow-through without risking contact between the club and screen. In tighter rooms, measure carefully with your longest club to verify clearance. The exact distance also depends on your screen mounting method; screens with more give (bungee-mounted) need slightly more clearance than rigid-mounted screens because the ball pushes the screen further forward on impact.

Does the mat need to be perfectly level for accurate readings?

Yes, a level mat surface is important for accurate launch monitor readings. An unlevel mat changes the effective lie angle of every shot, introduces systematic errors in launch angle measurement, and can cause inconsistent ball roll before the launch monitor captures the shot. Use a spirit level to verify the mat is flat in both directions, and shim with plywood or levelling strips if needed. UK garage floors commonly slope for drainage, so levelling is needed in most garage-based simulator installations.

Can I use the same ball position for all clubs?

For most camera-based launch monitors, the ball position remains the same regardless of club selection, as the cameras need the ball in a specific detection zone. For radar-based launch monitors, the recommended ball-to-unit distance may vary slightly between short irons, long irons, and driver due to different launch characteristics. Check your specific launch monitor documentation for guidance on whether different club types require different ball positions, and mark each position on the mat if they do.

How often should I replace my hitting mat?

Replace your hitting mat when the primary strike zone shows significant wear, typically visible as compressed or missing fibres where the club contacts the surface. For a golfer practising three to four sessions per week, a quality mat typically lasts twelve to eighteen months before the primary strike zone needs attention. Rotating the mat to distribute wear extends usable life. Budget mats with shorter, less dense fibres may need replacement every six to nine months with regular use, making them less cost-effective in the long run than investing in a quality mat from the outset.

Should I raise the launch monitor to match the mat height?

For camera-based launch monitors that sit on the floor beside the mat, the height difference between the mat surface and the floor is accounted for in the manufacturer setup specifications. Do not add extra height unless the documentation specifically instructs you to. For radar-based units behind the golfer, the unit typically sits at a fixed height regardless of mat thickness. If you change to a significantly thicker or thinner mat than what you originally calibrated with, recalibrate the launch monitor to account for the new ball height. Consult your launch monitor documentation for specific guidance on height relationships.

For the complete guide to building or buying your perfect simulator setup, explore our complete UK golf simulator buyer's guide. Our pre-configured bundles include matched mats with detailed positioning guides, making setup straightforward and accurate from day one.
