Home Golf Simulator Projector Mounting Guide UK: Ceiling, Wall & Short-Throw Setup

Your projector is the window to every course, every shot, and every practice session on your home golf simulator. But even the best projector in the world will deliver a disappointing image if it is mounted incorrectly. Throw distance, mounting angle, keystone correction, cable routing, and bracket selection all affect image quality, and getting any of these wrong can undermine your entire setup.

This is the complete UK guide to projector mounting for home golf simulators. Whether you are ceiling-mounting, wall-mounting, or using an ultra-short-throw setup, we cover every option with practical, step-by-step advice for UK homes.

Projector Mounting Options for Your Home Golf Simulator

There are three primary mounting approaches for a home golf simulator projector, each with distinct advantages and trade-offs. The right choice depends on your room dimensions, ceiling height, projector type, and personal preference.

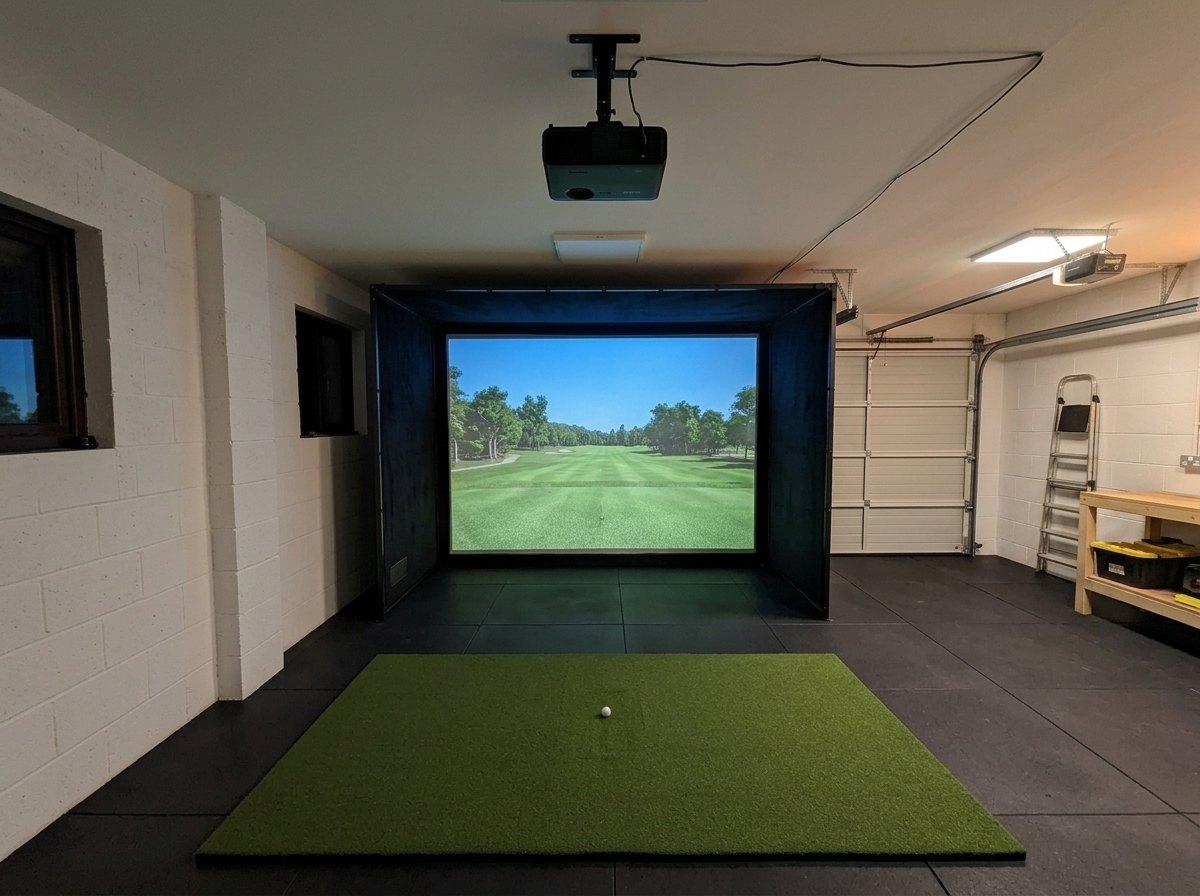

Option 1: Ceiling Mount (Most Common)

Ceiling mounting is the most popular choice for home golf simulator installations. The projector hangs from the ceiling above the hitting area, projecting forward onto the impact screen. This keeps the projector out of the swing path, maintains a clean floor area, and provides the most flexible positioning.

Advantages:

• Projector is completely out of the way with no risk of accidental contact
• Clean, professional appearance with no visible equipment at floor level
• Wide range of compatible projectors and mounts available
• Easy to adjust image position using mount adjustments and lens shift

Disadvantages:

• Requires drilling into ceiling joists (or masonry for concrete ceilings)
• Cable routing from ceiling to PC and power requires planning
• Access for maintenance and lamp replacement requires a step ladder
• Not suitable for all ceiling types such as very high vaulted ceilings

Option 2: Wall Mount

Wall mounting places the projector on the rear wall or a side wall, using a bracket arm to position it at the correct height and distance. This is a good alternative when ceiling mounting is not practical for your home golf simulator.

Advantages:

• Easier cable routing (run cables along the wall rather than across the ceiling)
• Easier access for maintenance
• Works well in rooms with problematic ceilings

Disadvantages:

• The bracket arm extends into the room, potentially interfering with tall golfers on the backswing
• More visible than a ceiling mount
• Requires a solid wall (masonry or timber stud, not plasterboard alone)

Option 3: Ultra-Short-Throw (UST) Floor or Shelf Mount

Ultra-short-throw projectors sit very close to the screen (20-50 cm) and project upward at a steep angle. They can be placed on a shelf just below the screen or mounted on the wall directly above or below the screen. This is the simplest mounting option but limits your projector choice to UST models.

Advantages:

• No ceiling drilling required
• Minimal shadow risk as the projector is so close to the screen that shadows are almost impossible
• Simple installation via shelf or low wall mount
• Short cable runs from projector to PC

Disadvantages:

• UST projectors are typically more expensive than standard throw models
• Positioned near the impact zone and needs protection from ball bounce-back
• Image geometry can be affected by screen surface flatness
• Fewer UST models suitable for home golf simulator use compared to standard throw

Calculating Throw Distance for Your Home Golf Simulator

Throw distance is the distance between the projector lens and the impact screen. Getting this right is essential for a correctly sized, focused image. Every projector has a specific throw ratio that determines how large an image it produces at a given distance.

Understanding Throw Ratio

A projector throw ratio is expressed as a number (e.g., 1.2:1). This means for every 1 metre of image width, the projector needs to be 1.2 metres away. To calculate the throw distance for your desired image size:

Throw Distance = Throw Ratio x Image Width

For a typical home golf simulator with a 3-metre-wide screen and a projector with a 1.2:1 throw ratio:

Throw Distance = 1.2 x 3.0 = 3.6 metres

This means the projector lens needs to be 3.6 metres from the screen. In a room that is 4.5 metres long, the projector would be positioned approximately 0.9 metres from the rear wall, which works but leaves little room for the golfer between the projector and the screen.

Choosing the Right Throw Ratio for a Home Golf Simulator

For UK home golf simulator rooms (typically 4-5.5 metres long):

• Short-throw (0.5-0.8:1): Ideal for shorter rooms. Projector sits 1.5-2.4 metres from a 3 m screen.
• Standard throw (1.0-1.5:1): Requires 3-4.5 metres from a 3 m screen. Works in longer rooms but the projector may be in the golfer space.
• Ultra-short-throw (0.2-0.4:1): Projector sits 0.3-0.6 metres from a 3 m screen. Placed at screen level.

For most UK installations, a short-throw projector (0.5-0.8:1) offers the best balance of positioning flexibility and image quality. For our complete projector selection guide, see Choosing the Right Projector for Your Golf Simulator.

Step-by-Step Ceiling Mount Installation for a Home Golf Simulator

Ceiling mounting is the most common approach, so here is the detailed process for UK installations:

Step 1: Locate Ceiling Joists

Use a stud finder to locate the timber joists behind your ceiling. In most UK homes, ceiling joists run parallel at 400 mm or 600 mm centres. Mark the joist positions with a pencil. The projector mount must be fixed into at least one joist, preferably two for maximum security.

Step 2: Calculate Mounting Position

Using your projector throw ratio, calculate the distance from the screen where the lens needs to be positioned. Remember that the mount extends below the ceiling and the projector hangs below the mount. Account for this offset. The lens position (not the mount plate position) determines the throw distance.

Also consider horizontal offset. Ideally, the projector should be centred on the screen. If joists do not align with centre, use a mount with a horizontal adjustment arm.

Step 3: Install the Mounting Plate

Drill pilot holes through the ceiling into the joist or joists. Use coach bolts (M8 or M10) or heavy-duty wood screws (minimum 75 mm length) to secure the mounting plate. Standard plasterboard fixings are NOT adequate for projector mounts. The weight plus vibration from golf impacts will work them loose. Always fix into solid timber or masonry.

Step 4: Attach the Projector

Most projectors have standard mounting points on the base (VESA-style or threaded inserts). Attach the projector to the mount bracket, then hang the bracket from the ceiling plate. Adjust the drop distance so the projector clears the golfer backswing with at least 30 cm of clearance.

Step 5: Align and Focus

Power on the projector and display a test pattern (most projectors include a built-in grid pattern). Adjust:

• Focus: Sharpen the image across the entire screen surface
• Keystone: Correct any trapezoidal distortion (vertical and horizontal)
• Lens shift: Fine-tune the image position without moving the projector
• Zoom: Size the image to fill your screen precisely

Aim for zero keystone correction if possible as keystone reduces image resolution. Adjust the physical mount position instead of relying on digital correction.

Cable Management for a Home Golf Simulator Projector

Clean cable management is essential for both safety and aesthetics. Loose cables in a simulator space are a tripping hazard and look untidy. Plan your cable routing before installing the projector.

Cables You Need to Route

• HDMI cable: From the picture source (the PC, or the Garmin R50 itself) to the projector. Measure the real route plus about a metre spare at each end. A passive lead is fine up to 10m at 1080p, which is why our 10m HDMI 2.1 lead covers most rooms. Beyond 10m use an active optical HDMI lead and fit it the right way round: they only pass signal in one direction, so check which end goes to the projector.
• Power cable: From mains socket to projector. Plan socket placement to minimise cable length.
• Audio cable (optional): Only if you plan to take sound from the projector, and with the AH500ST in our packages we wouldn't: its single 3.5mm out is mixed to mono and it has no ARC or optical. Take the sound before the projector instead, from the PC's own outputs or from an HDMI switch with audio extraction, and run a stereo lead from there to the speakers. See our sound and TV guide.

Routing Methods

• Surface-mounted trunking: Plastic cable trunking fixed to the ceiling and wall. Inexpensive (10-30 pounds) and neat. Available in white to match most ceilings.
• In-wall or in-ceiling routing: The cleanest option where cables run through the ceiling void or wall cavity. Requires drilling access holes and fishing cables. Best done before the room is finished.
• Cable clips: The simplest option for short runs. Adhesive or screw-fix cable clips hold cables against surfaces. Less tidy than trunking but quick to install.

For broader room setup guidance, see our garage build guide.

Choosing the Right Bracket for Your Home Golf Simulator Projector

Projector brackets vary significantly in quality, adjustability, and load capacity. For a home golf simulator environment, where vibration from ball impacts is constant, bracket quality matters more than in a typical home cinema installation.

What to Look For

• Weight capacity: Ensure the bracket is rated for at least 1.5x your projector weight. A 5 kg projector needs a bracket rated for at least 7.5 kg.
• Tilt and swivel adjustment: Fine-tuning the projector angle without re-drilling is essential. Look for brackets with independent tilt, swivel, and rotation adjustment.
• Drop distance: Adjustable drop rods let you position the projector at the optimal height. Check the minimum and maximum drop distances match your ceiling height and clearance requirements.
• Build quality: Steel construction with locking mechanisms. Avoid lightweight aluminium brackets that may flex or vibrate.
• Universal mounting pattern: Ensure the bracket accommodates your projector mounting points.

Budget Guidance

• Budget brackets (20-40 pounds): Basic functionality, limited adjustment, adequate for light projectors in non-vibration environments. Not recommended for home golf simulators.
• Mid-range brackets (40-80 pounds): Good adjustment range, decent build quality, suitable for most home golf simulator installations.
• Premium brackets (80-150+ pounds): Heavy-duty construction, fine-grained adjustment, vibration-resistant. Recommended for heavy projectors or installations where vibration from ball impacts is a concern.

Common Projector Mounting Mistakes in Home Golf Simulators

Avoid these common errors that we see in UK home golf simulator installations:

• Fixing into plasterboard alone: The single most common mistake. Always fix into joists, studs, or masonry.
• Incorrect throw distance: Measure twice, mount once. An incorrectly positioned projector means a blurry or incorrectly sized image.
• Forgetting lens shift: Many projectors have lens shift that allows image adjustment without moving the projector. Check this before deciding your mounting position as it gives you flexibility to work around joist positions.
• Ignoring ventilation: Projectors generate heat. Ensure adequate airflow around the projector, particularly if ceiling-mounted in a low or enclosed space.
• Using the wrong HDMI lead for a long run: A passive lead is fine up to 10m at 1080p (our 10m HDMI 2.1 lead covers most rooms). Beyond 10m use an active optical HDMI lead, fitted the right way round, as they only work in one direction.

For the full projector selection guide including recommended models for UK home golf simulators, read our projector guide.

Recommended Home Golf Simulator Packages

All of our home golf simulator bundles ship the BenQ AH500ST short-throw projector in a floor case that sits in front of the mat, so there's nothing to drill on day one. A ceiling mount, or the arm that fixes to the enclosure frame, are the options if you'd rather have the floor clear, and both put the lens at the same distance from the screen. The FlightScope Mevo Gen 2 Bundle and Foresight GC3 Bundle both include enclosures with integrated screen mounting, making projector alignment straightforward. Visit our 2026 Buyers Guide for complete purchasing advice.

Ceiling vs floor mounting at a glance

For a ceiling install, a universal mount with an adjustable spider bracket and tilt and swivel adjustment is what you want. Two things matter more than brand: fix it into a joist, not just plasterboard, and if the ceiling is high choose a mount with a drop pole so the projector sits at the height your screen geometry needs rather than firing down at a steep angle and leaning on keystone.

Shadows: the problem you don't see until your first swing

A projector throws light in a straight line, and anything between the lens and the screen prints a shadow on the picture. Short-throw, as in our packages: the AH500ST's 0.499 throw ratio puts the lens about 2.04m from a 2.3m-high screen, which is roughly 46cm in front of the ball. The projector is ahead of you, so it cannot throw your shadow onto the picture, whether it sits in the floor case or on a ceiling mount at the same distance. Standard-throw, ceiling mounted: these sit 3m or more back, behind and above head height, and the usual mistake is mounting one too low or too far forward so a tall follow-through clips the light. We don't sell standard-throw projectors for this reason, but if you already own one: stand at the hitting position, have someone shine a torch from the proposed mount point, and swing slowly; if your hands or clubhead cross the light, move the mount back or up. Floor mounted: the beam travels up from around shin height, so the danger zone is low and central. Offset the enclosure slightly towards the toe side and keep it far enough forward that the clubhead at impact is not crossing the light. A brief ball shadow as the ball flies through the beam is normal; a permanent golfer-shaped hole in the picture is what you are avoiding.

Cables: surface trunking, in-wall or first fix

The HDMI does not have to be buried in the wall, but it does have to get from the PC to the projector tidily. Surface trunking is the retrofit answer: self-adhesive PVC trunking up the wall and along the ceiling line, paintable and fully reversible, with no holes in the plasterboard. In-wall or in-ceiling runs the cable inside the cavity to a brush plate by the projector, the invisible option if the wall is already open. First fix is the best answer if the room is still being built or renovated: have the electrician run two HDMI cables (one spare, cables fail) and a power socket to the projector position before the plasterboard goes on, plus power and a data run to where the launch monitor and PC will live. To be clear on the terms: first fix is the work done before the walls and ceiling are closed up, so cable runs, conduit, back boxes and any new circuit. Second fix is everything after decoration, so socket and switch faceplates, light fittings and plugging the kit in; nothing in it goes inside the walls, which is why the boxes that sit between the kit, like an HDMI switch, can be bought any time. We run every lead in 25mm conduit with a draw string so it can be swapped later. Our first-fix guide has the full list for the builder.

Two technical notes. Passive HDMI is fine up to 10m at 1080p, which is why our 10m HDMI 2.1 lead covers most rooms; beyond 10m use an active optical HDMI lead, fitted the right way round, as they only work in one direction. And the projector needs mains power at the mount point; a hidden HDMI with an extension lead dangling to a floor socket defeats the object. Keep every cable out of the stance and swing area: plan the PC, projector and power on the same side of the hitting zone, route floor cables around the perimeter, buy two metres more than the tape says, and cable-tie slack behind the enclosure.

Aligning the projector image: position, keystone, lens shift and focus

Physical position first. Move the mount left, right, forward or back until the image is centred, then adjust tilt until it is square. This keeps full resolution. Keystone squares up an image digitally when the projector cannot sit perpendicular to the screen; use as little as possible because it costs sharpness. Lens shift, on projectors that have it, moves the image without that resolution penalty and is worth having if the budget allows. Focus last: zoom to fill the screen, then focus on a text or test screen until the centre and the edges are both sharp.

Common projector problems and fixes

Flicker or dropouts: almost always the HDMI; reseat both ends, try another cable, go active for long runs. Blurry on one side: the projector is not square to the screen; the near side focuses and the far side goes soft. Rainbow flashes: a trait of single-chip DLP projectors that some people notice in peripheral vision; a 3LCD model avoids it. Overheating shutdowns: give the vents clearance, clean the filter, and use eco mode in a hot garage. Buzzing fan: normal on lamp projectors; eco mode helps, and LED or laser models are quieter. More in our troubleshooting guide.

Frequently Asked Questions

What is the best projector mounting option for a home golf simulator?

Ceiling mounting is the most popular and versatile option for most UK home golf simulator installations. It keeps the projector out of the swing path, provides clean aesthetics, and works with the widest range of projectors. Ultra-short-throw floor mounting is a good alternative if you cannot drill into the ceiling.

Can I mount a projector on plasterboard for my home golf simulator?

No. Plasterboard alone cannot safely support a projector, especially in a home golf simulator environment where vibration from ball impacts is constant. Always fix the mounting bracket into ceiling joists, wall studs, or masonry. Use a stud finder to locate suitable fixing points.

How far should the projector be from the screen in a home golf simulator?

This depends on your projector throw ratio and screen width. For a typical 3-metre-wide screen, a short-throw projector (0.5-0.8:1 ratio) needs 1.5-2.4 metres, while a standard throw projector (1.0-1.5:1) needs 3.0-4.5 metres. Calculate using: Throw Distance = Throw Ratio x Screen Width.

Do I need a special HDMI cable for a ceiling-mounted home golf simulator projector?

Not a special one, but the right length. A passive High Speed HDMI lead is fine up to 10m at 1080p, and our 10m HDMI 2.1 lead covers most rooms, ceiling mount included. Beyond 10m use an active optical HDMI lead, fitted the right way round, as they only work in one direction.

How do I prevent the projector from shaking when hitting balls on my home golf simulator?

Use a heavy-duty mounting bracket rated for at least 1.5x your projector weight, fix it securely into ceiling joists with coach bolts, and ensure all locking mechanisms on the bracket are fully tightened. Quality brackets with steel construction absorb vibration far better than lightweight aluminium alternatives.

Is it better to ceiling mount or floor mount a golf simulator projector?

Both work. Our packages ship the AH500ST in a floor case in front of the mat because it needs no drilling and, being a short-throw, it sits ahead of you so it cannot shadow the picture. A ceiling mount is the tidier option in a finished room, out of sight and off the floor, at the cost of a joist fixing and a cable run through the ceiling. Whichever you pick, route the HDMI around, never across, the hitting zone.

Does the HDMI cable have to be wired inside the wall?

No. Surface trunking up the wall looks tidy and is reversible. In-wall routing is the invisible upgrade, and if the room is still being built, have the electrician first-fix two HDMI runs and power to the projector position before plasterboarding.

Does the projector plug into the launch monitor?

Not usually. The launch monitor talks to the PC, laptop or tablet running the simulator software, and that device feeds the projector over HDMI. The exception is the Garmin Approach R50, which runs the simulator on the unit itself: its HDMI port sends picture and sound straight to the projector at up to 1080p, so there's no PC in the chain. Plan power and cable routes for the projector position and for the device position, which in an R50 room is the unit's spot beside the mat.

What throw ratio do I need for a UK garage?

Most UK single garages are 5 to 6m deep. A short-throw projector (roughly 0.5:1 to 1.0:1) is the usual fit, standard-throw models struggle in rooms under about 5m, and an ultra-short-throw unit works at almost any depth. Check the maker's throw calculator against your room before you drill anything.
