How Camera Launch Monitors Work: Photometric Technology Explained (2026)

Camera-based launch monitors represent the technology behind some of the most accurate home golf simulator setups available today. Also known as photometric systems, these devices use high-speed cameras and infrared lighting to capture incredibly detailed images of the ball and club at the exact moment of impact. From those images, they extract precise measurements of ball speed, launch angle, spin rate, spin axis, and a full suite of club delivery data. Understanding how this technology works helps you appreciate why it produces such reliable data and how to get the best performance from your system.

How Photometric Technology Works in a Home Golf Simulator

At its core, a camera-based launch monitor is a high-speed photography system designed to capture multiple images of the golf ball and club head in the microseconds surrounding impact. These cameras operate at speeds far beyond what the human eye can perceive, typically capturing thousands of frames per second with exposure times measured in millionths of a second.

The process begins with infrared illumination. The launch monitor contains built-in infrared LEDs that pulse light toward the hitting area at precisely timed intervals. This infrared light is invisible to the golfer, so it does not cause distraction, but the high-speed cameras are sensitive to it and use it to create clear, high-contrast images of the ball and club even in varied ambient lighting conditions. This is why camera-based monitors work reliably regardless of whether your home golf simulator room has bright lights, dim lights, or mixed lighting conditions.

As the ball lifts off the clubface, the cameras capture a sequence of images showing the ball at multiple positions across the first few inches of its flight. By analysing the ball's position in each frame, the system calculates ball speed and launch angle with extreme precision. The rotation of the ball between frames reveals spin rate and spin axis. Meanwhile, separate camera channels or imaging zones capture the club head position, determining face angle, club path, attack angle, and dynamic loft. Our buyer's guide covers how these metrics translate into better practice.

Image Processing: From Photographs to Data on Your Home Golf Simulator

The raw images captured by the cameras are processed by sophisticated algorithms running on the monitor's internal computer. This image processing converts visual information into the numerical data points that appear on your simulator screen.

For ball data, the algorithms identify the ball in each captured frame using pattern recognition. They locate the ball's centre, measure its position relative to the previous frame, and calculate the distance it has moved in the time between captures. Since the time between frames is known precisely from the camera's frame rate, dividing distance by time gives ball speed. The direction of movement across frames determines both vertical launch angle and horizontal launch direction.

Spin measurement is particularly clever. Golf balls have markings, dimple patterns, and surface textures that create a unique visual signature. As the ball rotates between frames, these patterns shift position. The algorithms track specific features on the ball's surface and measure how far they have rotated between images. This rotation, combined with the known time interval, gives the spin rate in revolutions per minute. The axis around which the features rotate reveals the spin axis, telling the system whether the ball has pure backspin, sidespin, or a combination of both.

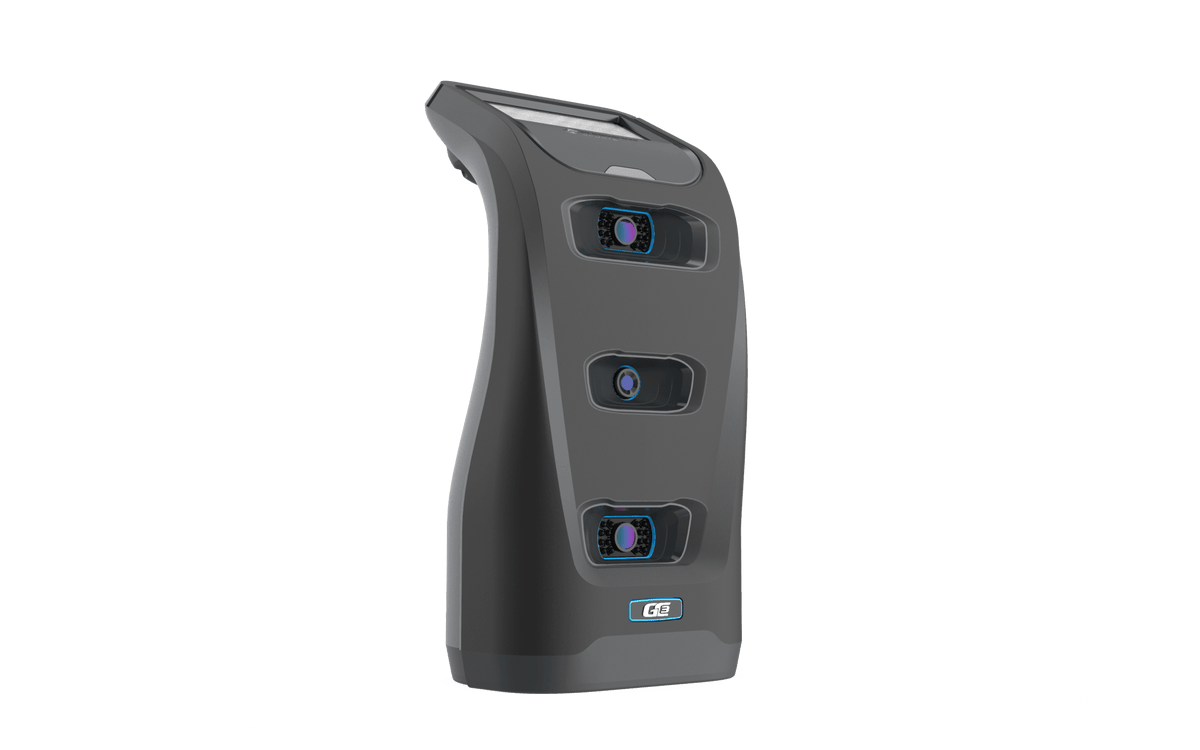

Club data processing follows a similar principle. The cameras capture images of the club head as it passes through the impact zone, and algorithms track the clubface position and orientation across frames. The Foresight GC3S and Foresight GC3 are particularly sophisticated in this regard, capturing both ball and club data simultaneously through dedicated imaging channels that operate independently of each other.

Club Data Capture: The Camera Advantage

One of the most significant advantages of camera-based launch monitors for a home golf simulator is their ability to capture detailed club delivery data directly. While radar systems primarily track the ball and may infer club characteristics from the ball data, camera systems photograph the club head itself and measure its behaviour at impact.

The club metrics captured typically include club head speed, measured from the club's position across consecutive frames. Face angle at impact, measured from the orientation of the clubface relative to the target line. Club path, measured from the direction the club head is travelling through the impact zone. Attack angle, measured from the vertical component of the club's movement. Dynamic loft, measured from the effective loft of the clubface at the moment of contact.

This direct club measurement is enormously valuable for understanding cause and effect in your swing. If your ball is curving to the right, your radar monitor might tell you the ball has left-to-right spin. But your camera monitor tells you precisely why: the face was two degrees open to the path at impact. This diagnostic capability makes camera systems particularly popular with golfers and coaches who want to understand and fix specific swing issues rather than simply observe their results.

For home use, this means your practice sessions on a camera-based system provide richer feedback. You do not just see what the ball did; you see what the club did to make the ball behave that way. This closes the feedback loop and accelerates improvement by connecting your swing movement directly to the ball flight outcome.

Camera Monitor Placement and Space Requirements

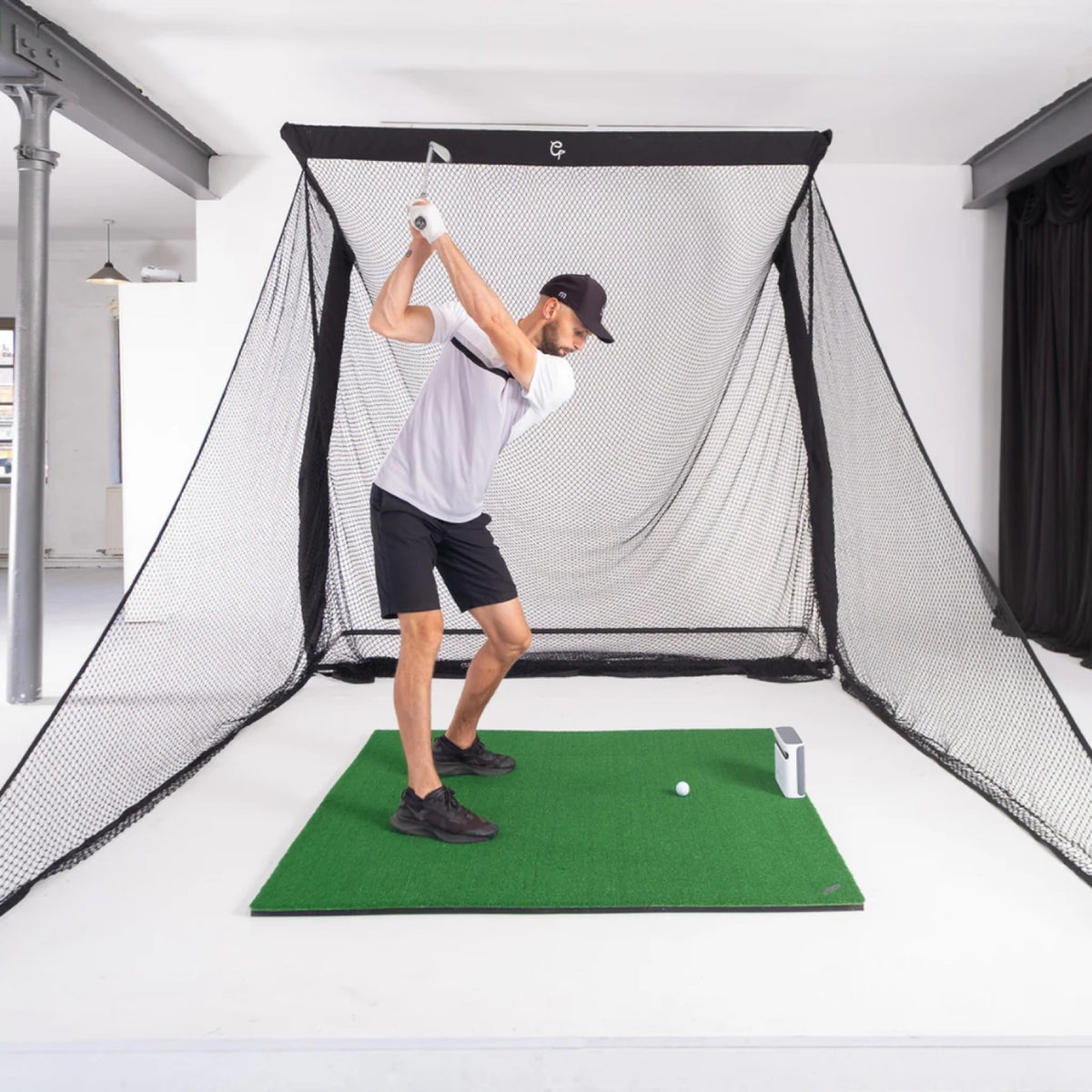

Camera-based launch monitors sit to the side of or in front of the golfer, positioned to look down at the hitting area. This is fundamentally different from radar monitors that sit behind the golfer, and it has implications for room layout and space requirements in your home golf simulator setup.

The key advantage of front or side placement is that the monitor does not need to track the ball through its flight. It only needs to see the ball and club at impact, which means it works in very compact spaces. The minimum ball-to-screen distance can be as short as five to six feet with some camera systems, compared to seven to nine feet for many radar monitors. For golfers with limited room depth, this can be the difference between a functional setup and an impossibly tight space.

Lighting is more important for camera systems than for radar. While the infrared illumination reduces dependence on ambient light, extremely bright or unevenly lit conditions can occasionally affect image quality. Avoid having bright light sources, such as uncovered bulbs or direct sunlight, shining directly on the hitting area from above. Consistent, diffused lighting works best. Our lighting guide covers optimal lighting setups for camera-based systems.

The hitting surface matters too. Camera monitors rely on a clear view of the ball and club at specific positions relative to the mat. Using a consistent ball position and ensuring the mat surface does not obscure the camera's view are essential for reliable data. Most premium hitting mats are designed with camera monitors in mind and include appropriate zones that maintain clear sightlines. Check our hitting mat guide for compatible options.

Camera Versus Radar: When Photometric Technology Excels

Camera-based launch monitors excel in several specific scenarios that matter for home golf simulator users. Understanding these scenarios helps you decide whether photometric technology is the right choice for your needs and environment.

Club fitting and equipment testing is where camera systems shine brightest. The detailed club data they capture, face angle, club path, attack angle, and dynamic loft, provides the exact metrics that club fitters use to optimise your equipment. If you plan to use your home golf simulator for self-directed fitting or to gather data for a professional fitting session, a camera system provides the most complete data set. Many PGA professionals and independent fitters use the same Foresight launch monitors found in home setups, so your data speaks their language.

Swing analysis and coaching benefit similarly. The direct cause-and-effect relationship between club delivery and ball flight, both clearly shown in camera data, makes it easier to identify and correct specific swing faults. A golfer working with a coach can share their camera data remotely, giving the coach an objective picture of club delivery without needing to be in the room.

Compact spaces favour camera systems because of the shorter minimum distance requirements. If your dedicated simulator room is tight on depth, a camera monitor may be your only option for accurate data. The Foresight GC3S works accurately in rooms where some radar monitors would struggle, making it ideal for the smaller garage bays and spare bedrooms that are common in UK homes.

The trade-off is that camera systems typically cost more than entry-level radar monitors, and they require slightly more attention to setup positioning and lighting conditions. The FlightScope Mevo Gen 2 radar system offers an excellent alternative at a lower price point while still providing accurate ball data for simulation. Browse our complete golf simulator range to compare both technologies and find the best match for your space, budget, and priorities.

Getting the Best Results from Your Camera Monitor

Maximising the accuracy and reliability of your camera-based launch monitor requires attention to a few key setup details. First, ensure the unit is positioned precisely according to the manufacturer's specifications. Camera monitors are more sensitive to placement accuracy than radar units because the imaging geometry must be exact for the algorithms to calculate accurate measurements.

Keep the camera lenses and infrared LEDs clean. Dust, dirt, or fingerprints on the optical surfaces degrade image quality and can introduce measurement errors. A soft microfibre cloth is all you need, and a quick wipe before each session ensures consistently clean optics. Also keep the hitting area clear of debris and stray golf balls that could confuse the image processing algorithms.

Calibrate your unit as recommended by the manufacturer. Most camera systems include an automated calibration routine that uses a specific calibration target or alignment process. Running this procedure regularly, typically every few weeks or after moving the unit, maintains measurement accuracy over time. Store calibration records so you can track whether your system's baseline is stable.

For the most reliable data on your home golf simulator, use the same ball type consistently. Different balls have different surface characteristics that the algorithms reference when identifying and tracking the ball. Switching between brands or models mid-session can introduce small variations in spin measurements. Stick with one premium ball type for your data-focused sessions. Our room size guide and enclosure guide cover the physical environment that supports optimal camera monitor performance.

Frequently Asked Questions

Do camera monitors work in the dark?

Yes. Camera monitors use their own infrared illumination, which is invisible to the human eye. They do not depend on ambient light to capture images. However, you will still want room lighting for your own visibility and comfort while using the simulator.

Can I use range balls with a camera-based launch monitor?

You can, but data accuracy may be reduced. Range balls often have worn surfaces and inconsistent construction, which can affect the image processing algorithms' ability to accurately track spin and identify the ball. For the best data quality, use premium golf balls in consistent condition.

Do camera monitors need metallic dots on the ball?

No. Camera systems track the ball using its visual appearance, including dimple patterns and surface markings. They do not require any modifications to the ball. This is one advantage of photometric technology, as there is no need for metallic stickers or any special ball preparation before each session.

How long do camera launch monitors last?

With proper care, camera-based launch monitors last many years. The high-speed cameras and infrared LEDs have long operational lifespans, and the devices have no moving parts that wear out. Software updates from the manufacturer continue to improve performance over time. Many golfers use their Foresight units for five or more years without any degradation in performance.

Are camera monitors affected by temperature changes?

Extreme cold can affect battery performance if the unit runs on battery power, and very high temperatures should be avoided to protect the electronics. For typical UK home environments, including unheated garages in winter, camera monitors perform reliably. Allow the unit a few minutes to acclimatise if moving it from a warm house to a cold garage before starting your session.
