SportScreen Vanish Series Retractable Golf Simulator Enclosure
Impact screen · Side screens · Ceiling panel · Back protection · Wall and ceiling brackets
Made by The SportScreen. Four sizes, hand crank or remote control.
+ extras ·
or /mo with Klarna & finance at checkout
Free design consultation before you buy. Send Tom your room size and he confirms the right model, the mounting and the layout for your space — no obligation.
Free
Every model is the full enclosure: impact screen, side screens, ceiling panel and brackets. Choose by your room width and ceiling.
- Premium 3-ply impact screen
- Side screens and ceiling panel
- Back protection
- Wall and ceiling brackets
- Hand crank or remote control
- Owner’s manual
UK mainland delivery £20 · 14-day money-back · Price match · Secure checkout
Questions? Everything you need to know — or WhatsApp Tom
Delivery Information
Delivery to UK mainland addresses is £20.
The Vanish ships as a large, heavy consignment. Tom confirms the delivery date for your model when you order and arranges a delivery window with you in advance. Delivery is to a garage or ground-floor room.
For full details, please visit our Shipping Policy page.
Setup Guide
The roller housing fixes into solid structure, ceiling joists or wall studs, using the universal brackets supplied. There are four mount options: two ceiling mounts, a back-wall mount and a side-wall mount.
Assembly needs two people, and the manufacturer recommends using a general contractor for the install. On the remote-control version you pair the remote with the motor and set the upper and lower stop positions, so the screen halts at the right height every time.
Space Requirements
Choose your model by room width and ceiling height. These are the manufacturer's figures.
| Model | Room width | Ceiling | Picture |
| Vanish 11 | 3.43–3.73m | 2.74–3.20m | 3.05 × 2.29m (4:3) |
| Vanish 13H | 3.96–4.34m | 3.19–3.65m | 3.63 × 2.73m (4:3) |
| Vanish 16 | 5.03–5.33m | 2.74–3.20m | 4.65 × 2.29m (16:9) |
| Vanish 16H | 5.03–5.33m | 3.05–3.51m | 4.65 × 2.59m (16:9) |
Every model is 1.52m deep when deployed. Allow 20–30cm clear behind the screen and 15–20cm each side, and a room at least 5.18m long. If your ceiling is lower than 2.74m, send Tom your room before you order: the ceiling mounts are height-adjustable and there are wall-mount options.
What's In The Box
- Premium 3-ply impact screen
- Side, top and back panels
- Wall bracket
- Ceiling bracket
- Hand crank handle, or motor and remote control, depending on the version you choose
- Owner's manual
To make it a simulator, add a launch monitor, projector and hitting mat from the extras on this page.
Product Description
The SportScreen Vanish Series is a full golf simulator enclosure that rolls up to the ceiling when you are finished. Screen down, it is a proper hitting bay with an impact screen, side screens and a ceiling panel. Screen up, the floor is clear and the room goes back to being a garage, a gym or a lounge.
- Retractable: the impact screen, side screens and ceiling panel roll away on aluminium rollers, by hand crank or by remote control.
- A complete enclosure: premium 3-ply impact screen with a blackout backing, side screens, ceiling panel and back protection, with wall and ceiling brackets supplied.
- Four sizes: Vanish 11 and 13H (4:3), Vanish 16 and 16H (16:9), for rooms from 3.43m to 5.33m wide.
- More than golf: the screen works as a projection surface for films, sport and gaming.
Every model is 1.52m deep when deployed. Not sure which one fits? Send Tom your room size for a free consultation before you order.
Specifications
Why Buy From OpenGolfer?
- Real golfer, not a call centre. OpenGolfer is run by Tom, who practises from his own home setup and has designed hundreds of bays.
- Fit checked before you buy. Send your room size and Tom confirms the right model and mounting for your space.
- Clearpay and Klarna available at checkout, and bank transfer welcome.
- Price Match Guarantee on every order.
SportScreen Vanish Series
A simulator bay
that gets out of the way.

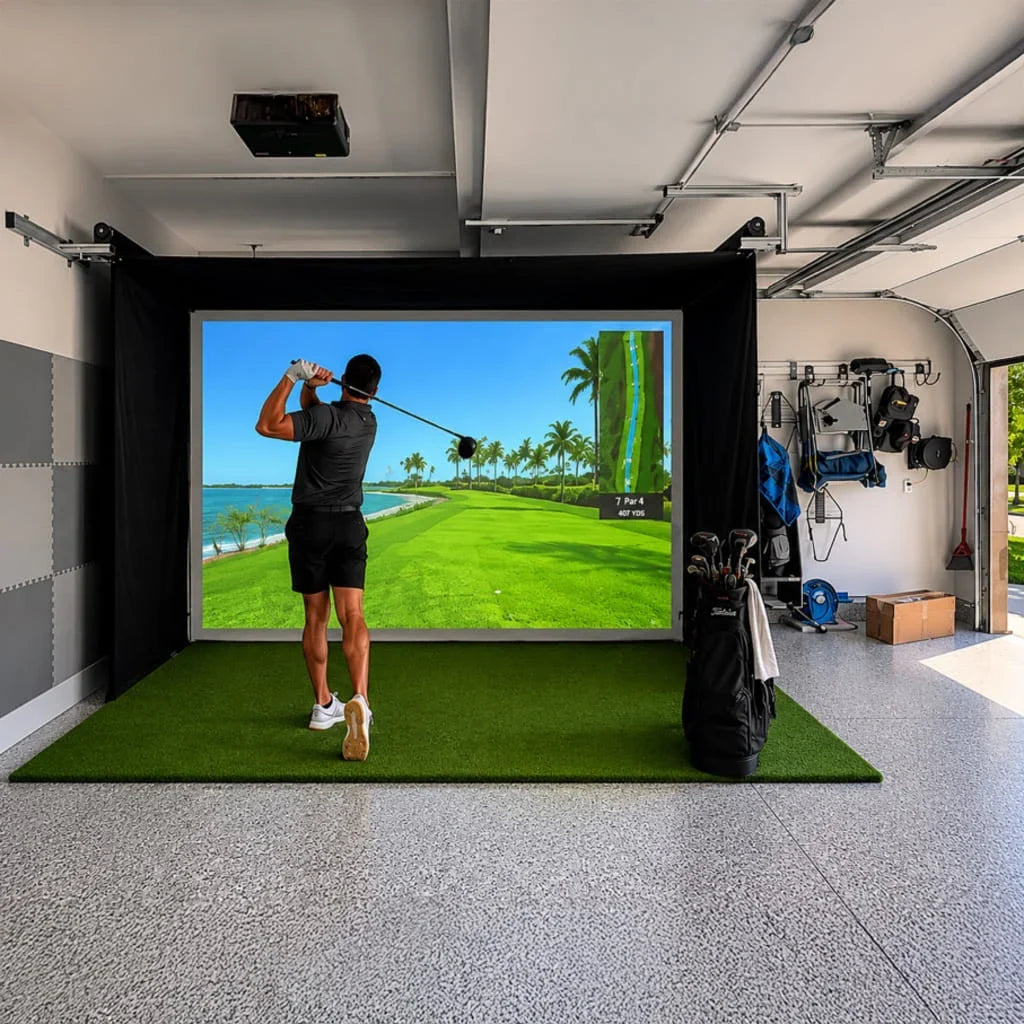

Roll it down and you have a full enclosure: impact screen, side screens and a ceiling panel around the ball. Roll it up and the floor is clear again, so the same room still works as a garage, a gym or a lounge.
- Screen, sides and ceiling roll away
- Hand crank or remote control
- 4:3 and 16:9 models
- Doubles as a cinema screen
Will it fit?
Which Vanish fits your room?
Choose by the width of your room and the height of your ceiling. Every model is 1.52m deep when it is down, and the maker suggests a room at least 5.18m long.

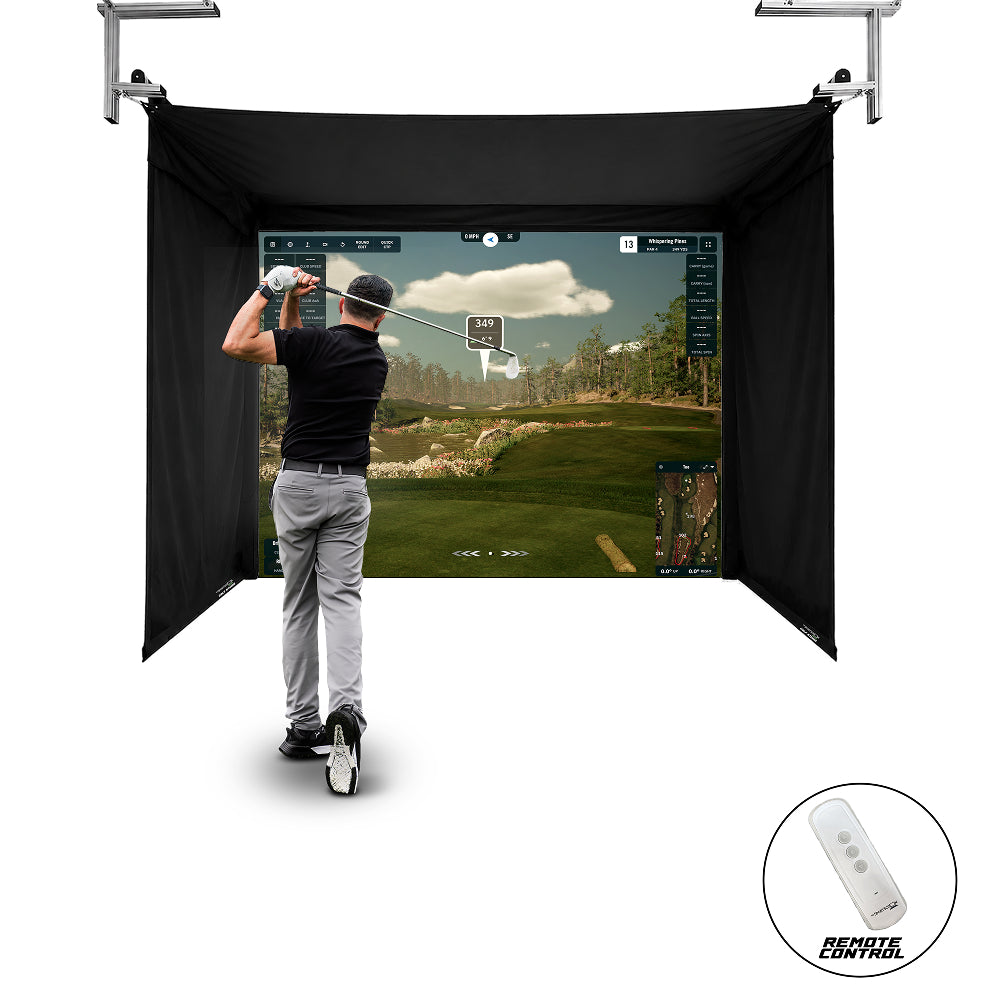

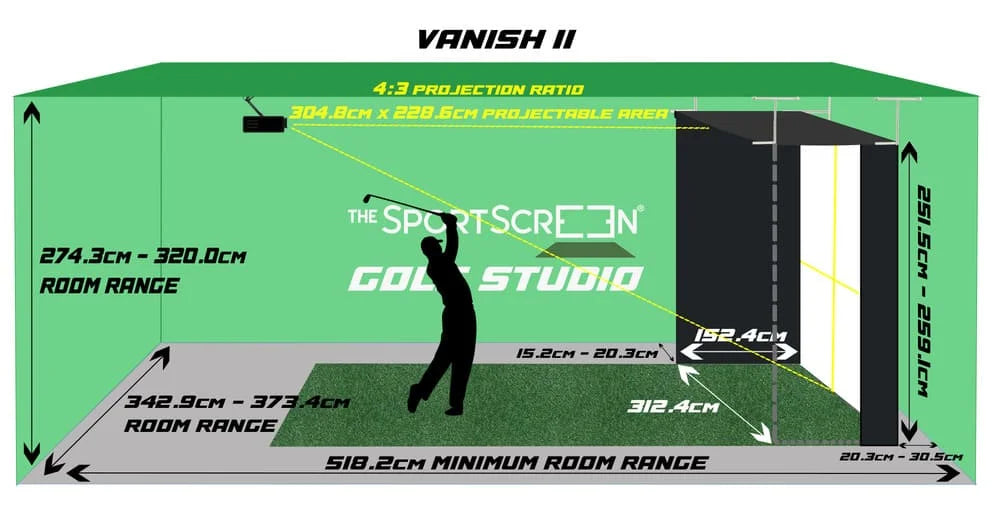

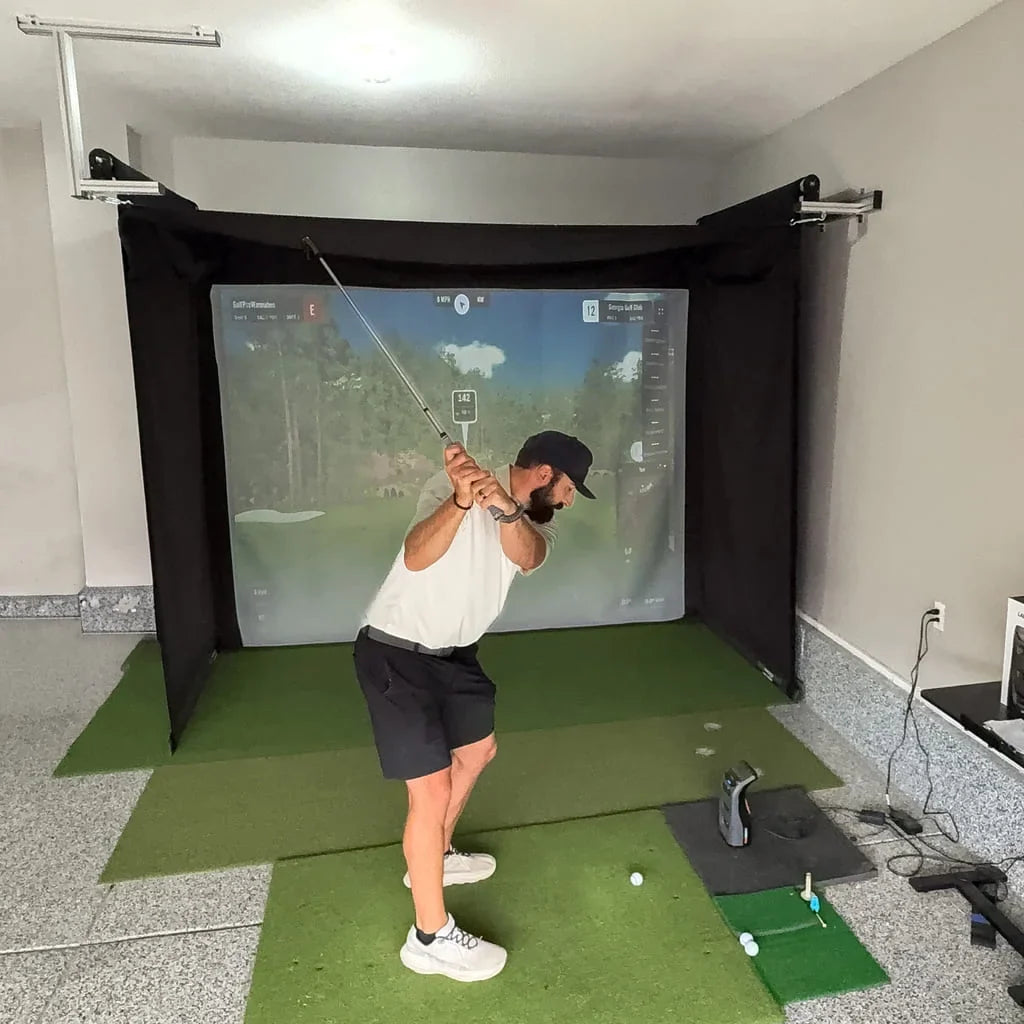

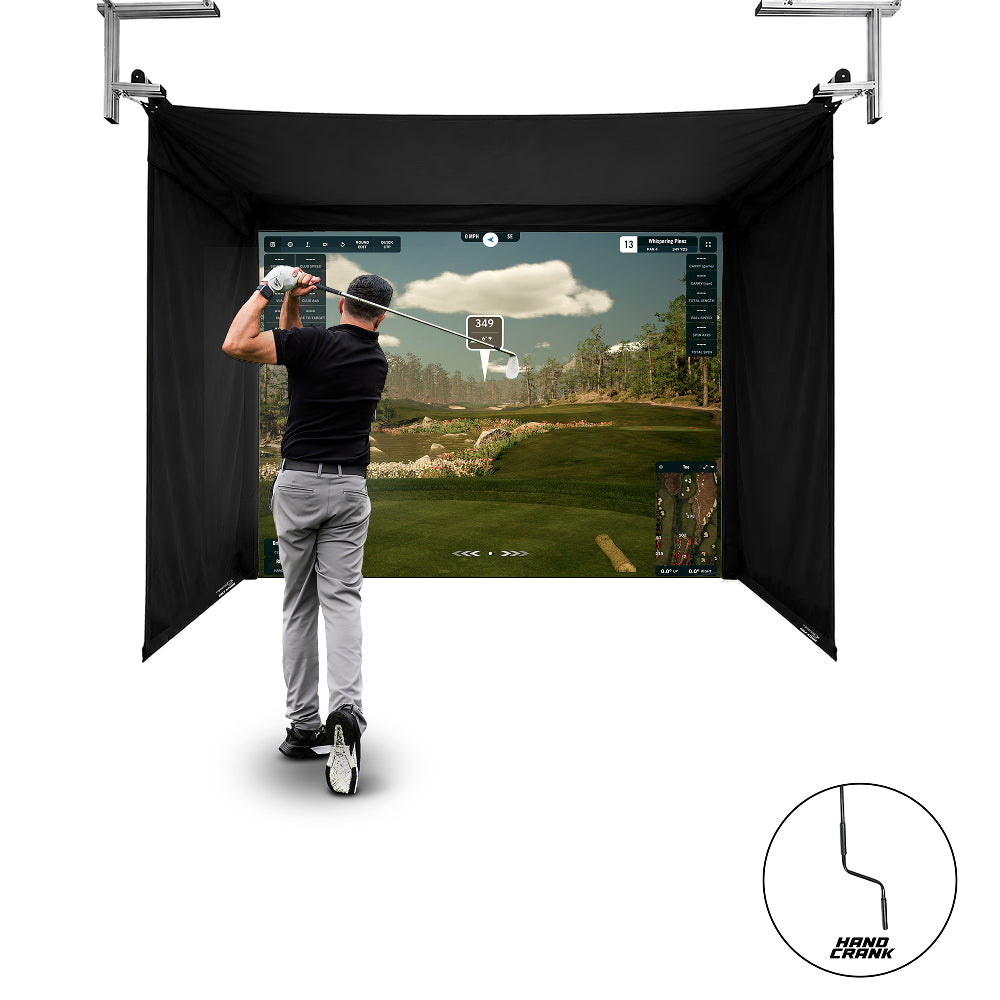

Vanish 11
A 4:3 screen for a standard-height room.
- Your room width
- 3.43–3.73m
- Your ceiling height
- 2.74–3.20m
- Enclosure width
- 3.12m
- Screen drop
- 2.52–2.59m
- Projected picture
- 3.05 × 2.29m · 4:3
- Clearance
- 20–30cm behind, 15–20cm each side
Vanish 13H
The tall 4:3 model, for high ceilings.
- Your room width
- 3.96–4.34m
- Your ceiling height
- 3.19–3.65m
- Enclosure width
- 3.73m
- Screen drop
- 2.96–3.04m
- Projected picture
- 3.63 × 2.73m · 4:3
- Clearance
- 20–30cm behind, 15–20cm each side

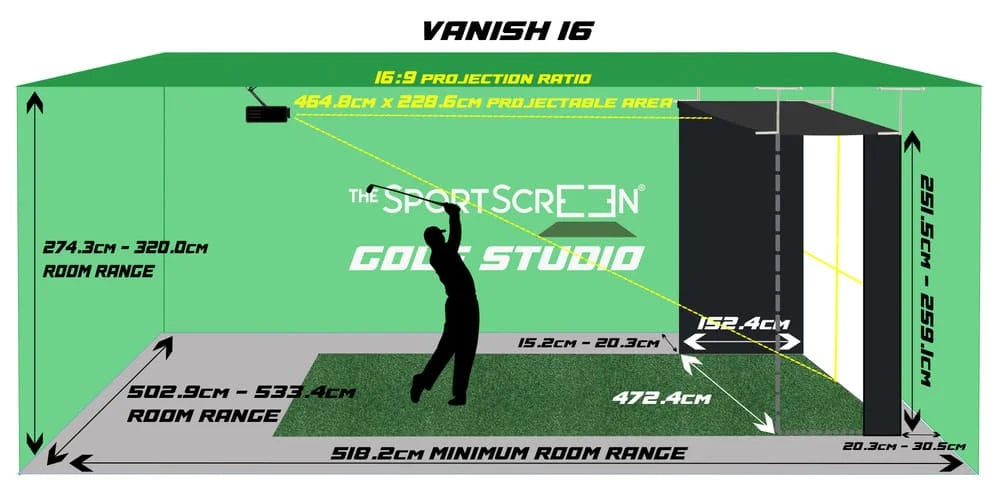

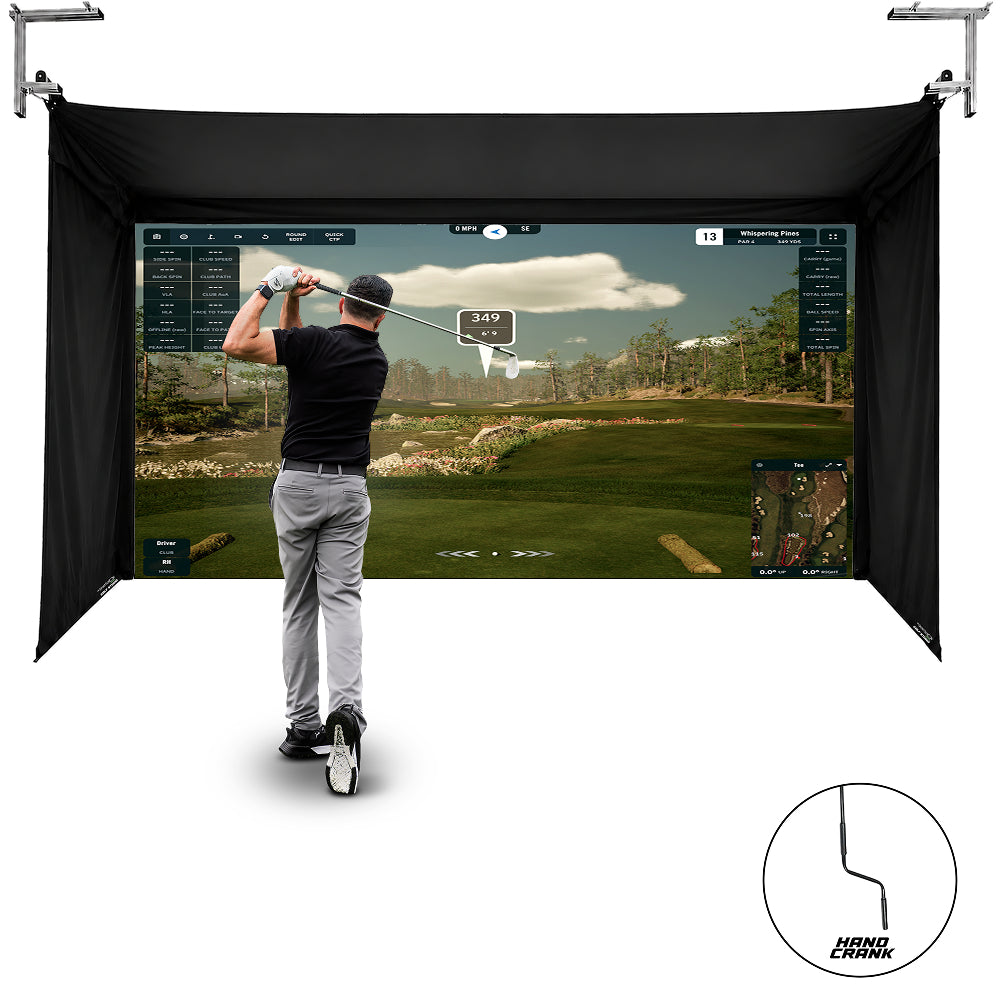

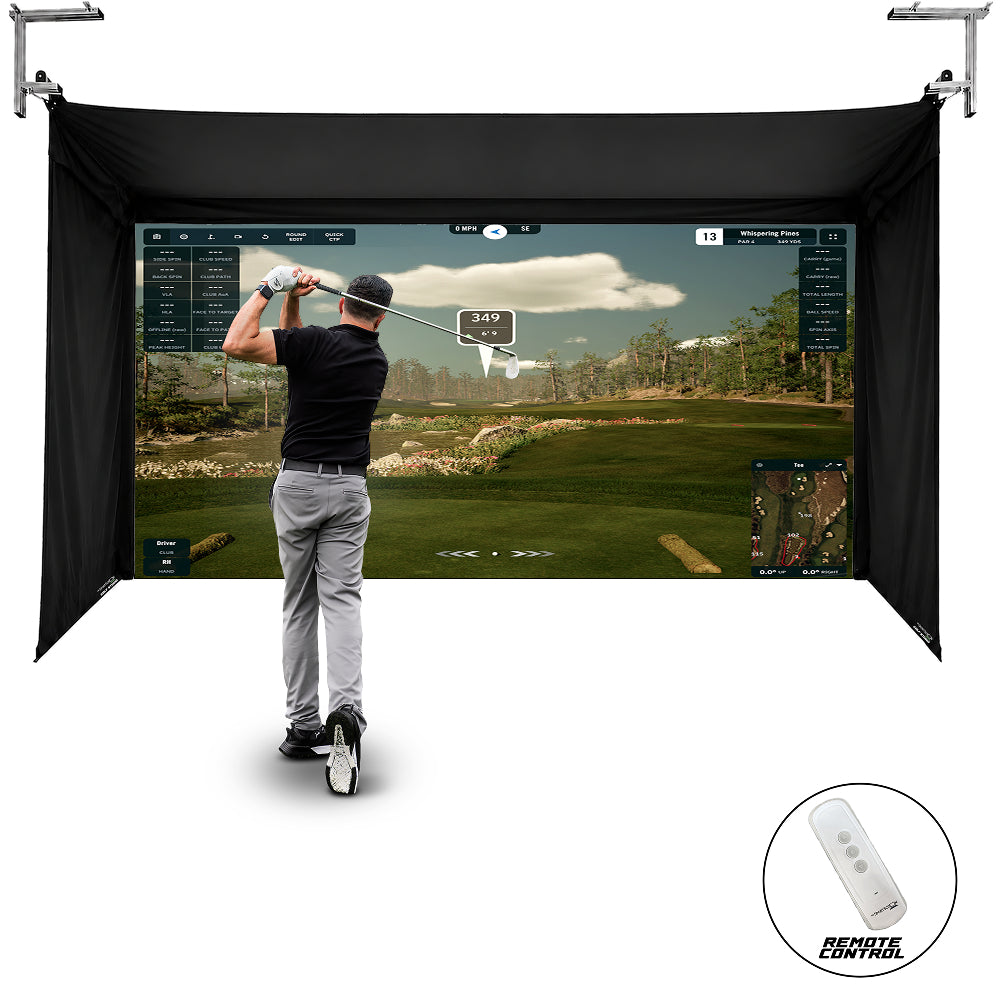

Vanish 16
The widescreen model for a standard-height room.
- Your room width
- 5.03–5.33m
- Your ceiling height
- 2.74–3.20m
- Enclosure width
- 4.72m
- Screen drop
- 2.52–2.59m
- Projected picture
- 4.65 × 2.29m · 16:9
- Clearance
- 20–30cm behind, 15–20cm each side

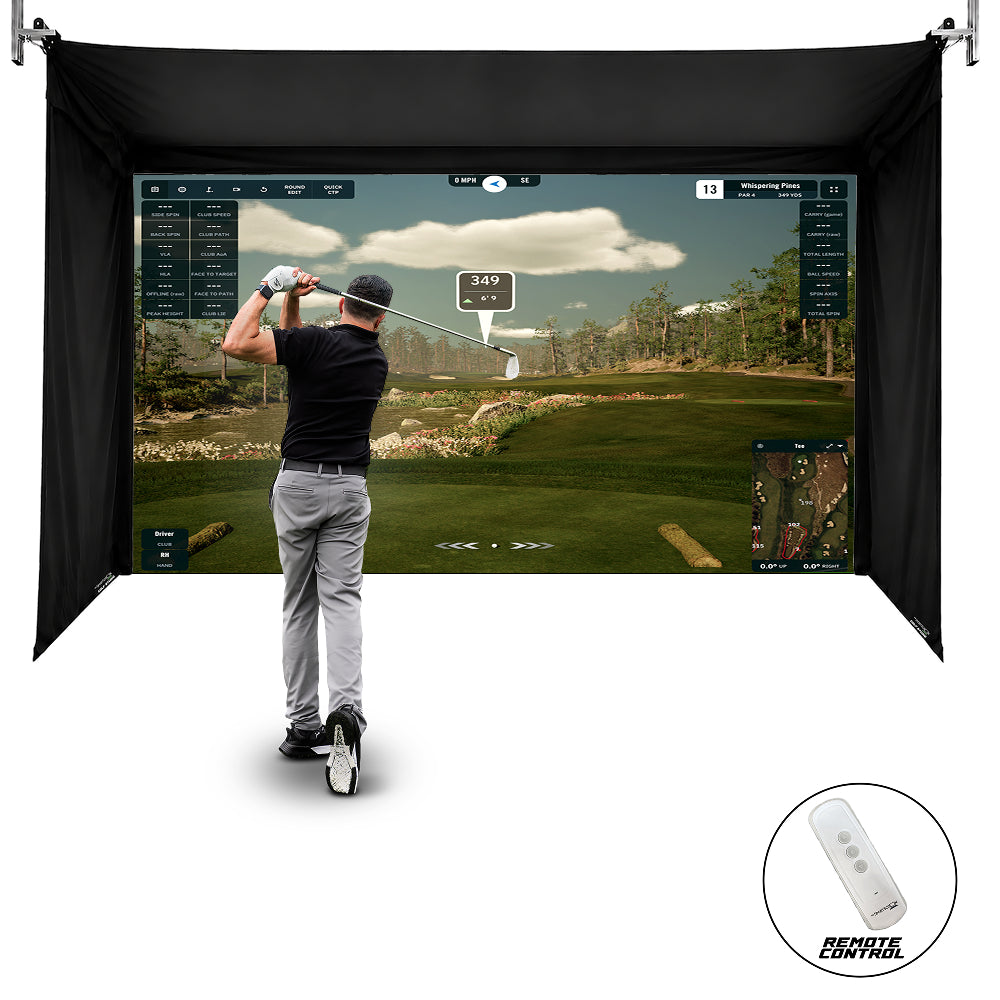

Vanish 16H
Widescreen with extra height, for tall rooms.
- Your room width
- 5.03–5.33m
- Your ceiling height
- 3.05–3.51m
- Enclosure width
- 4.72m
- Screen drop
- 2.85–2.92m
- Projected picture
- 4.65 × 2.59m · 16:9
- Clearance
- 20–30cm behind, 15–20cm each side
Ceiling lower than 2.74m, or a room between sizes? The ceiling mounts are height-adjustable and there are back-wall and side-wall mount options, so there is often a way. Send Tom your room before you order and he will tell you honestly whether it works.
Send Tom your room — free fit checkHow it works
- 1Fix it onceThe roller housing fixes into ceiling joists or wall studs with the brackets supplied. Four mount options cover most rooms.

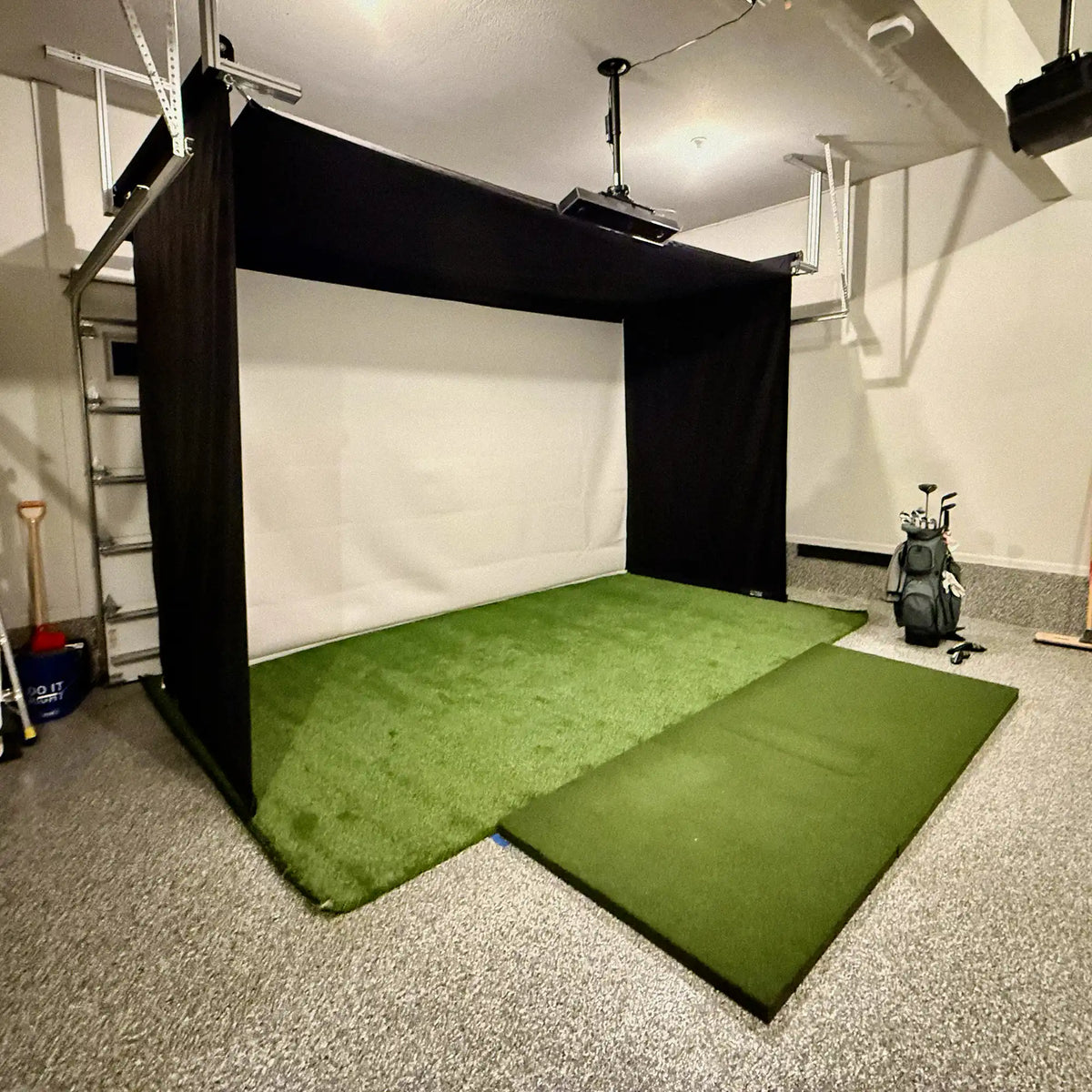

- 2Roll down and playThe screen, side screens and ceiling panel drop into a full enclosure. Add your launch monitor, projector and mat.

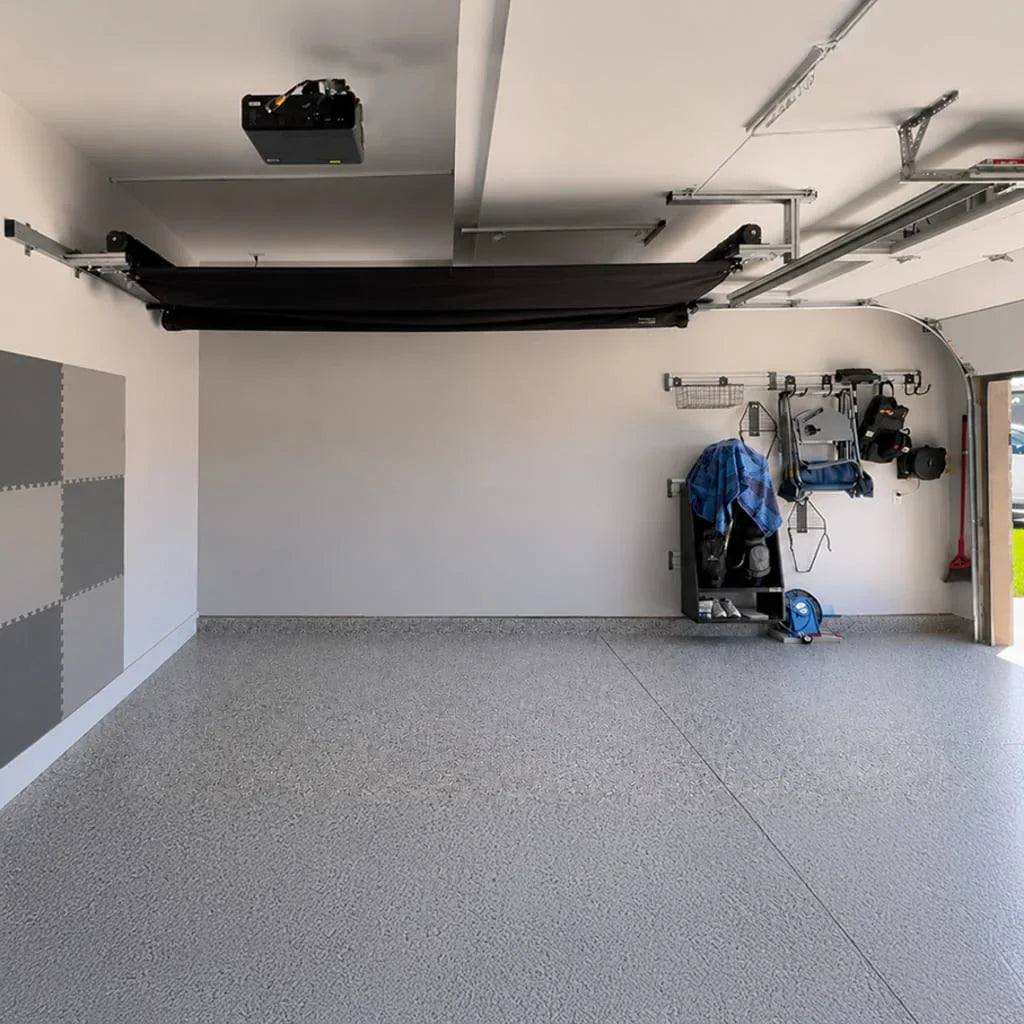

- 3Roll up, room backWind it up with the hand crank or press the remote, and the floor is clear for everything else the room does.

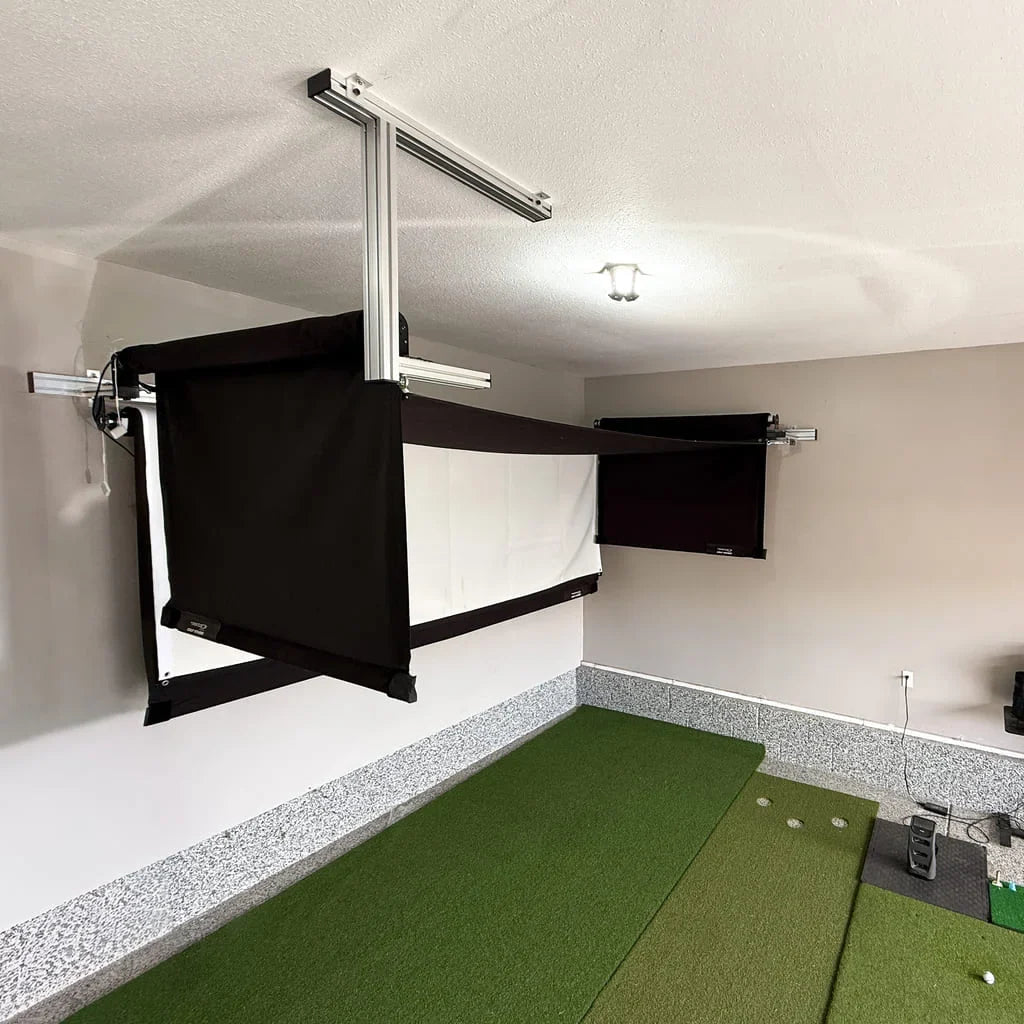

Retractable
Rolls away when you are done

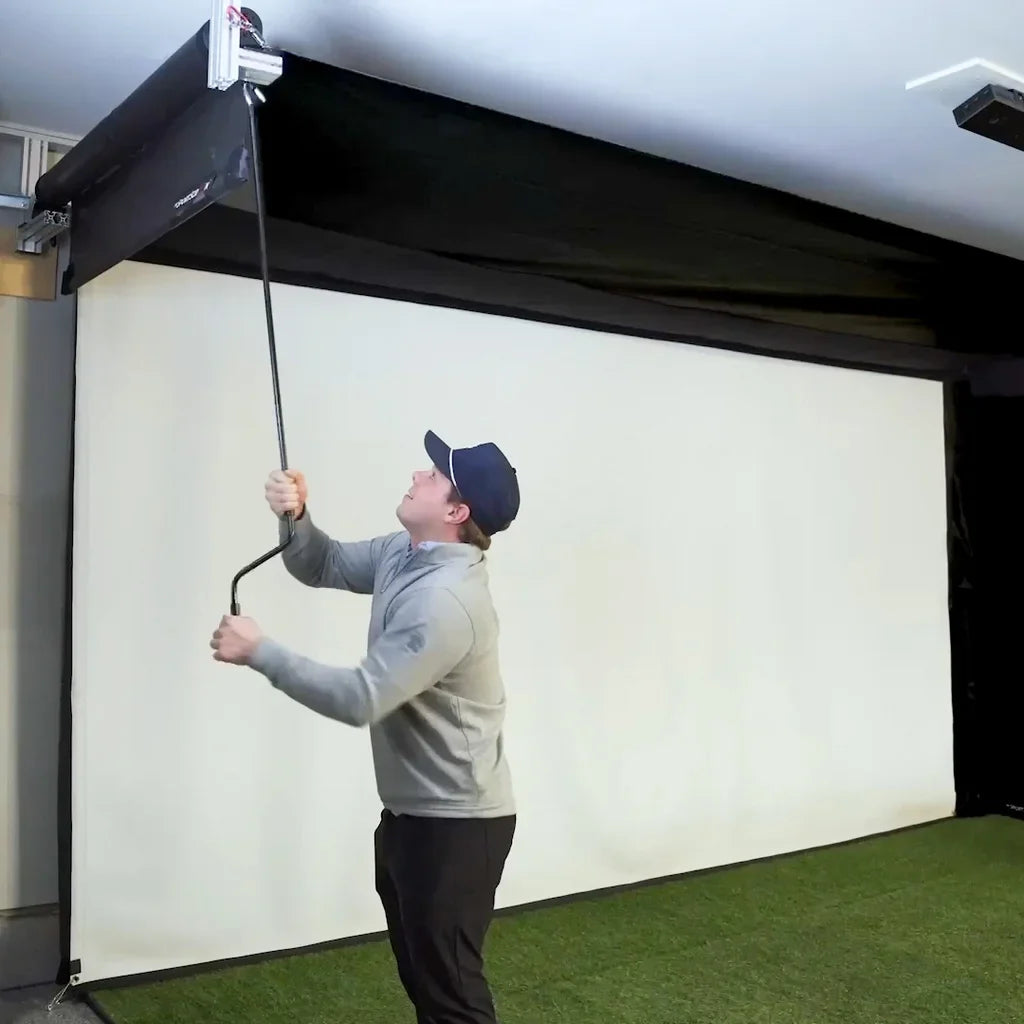

The impact screen, side screens and ceiling panel wind up onto aluminium rollers. Choose the hand crank, or the remote-control version, where you set the stop positions once and the screen halts at the right height every time.
- Hand crank or remote control
- Set-and-forget stop positions on the remote
All in one
A full enclosure, not only a screen
A roll-down screen on its own leaves the sides and ceiling open. The Vanish brings side screens, a ceiling panel and back protection down with it, with wall and ceiling brackets in the box.
- Side screens and ceiling panel
- Back protection
- Brackets supplied

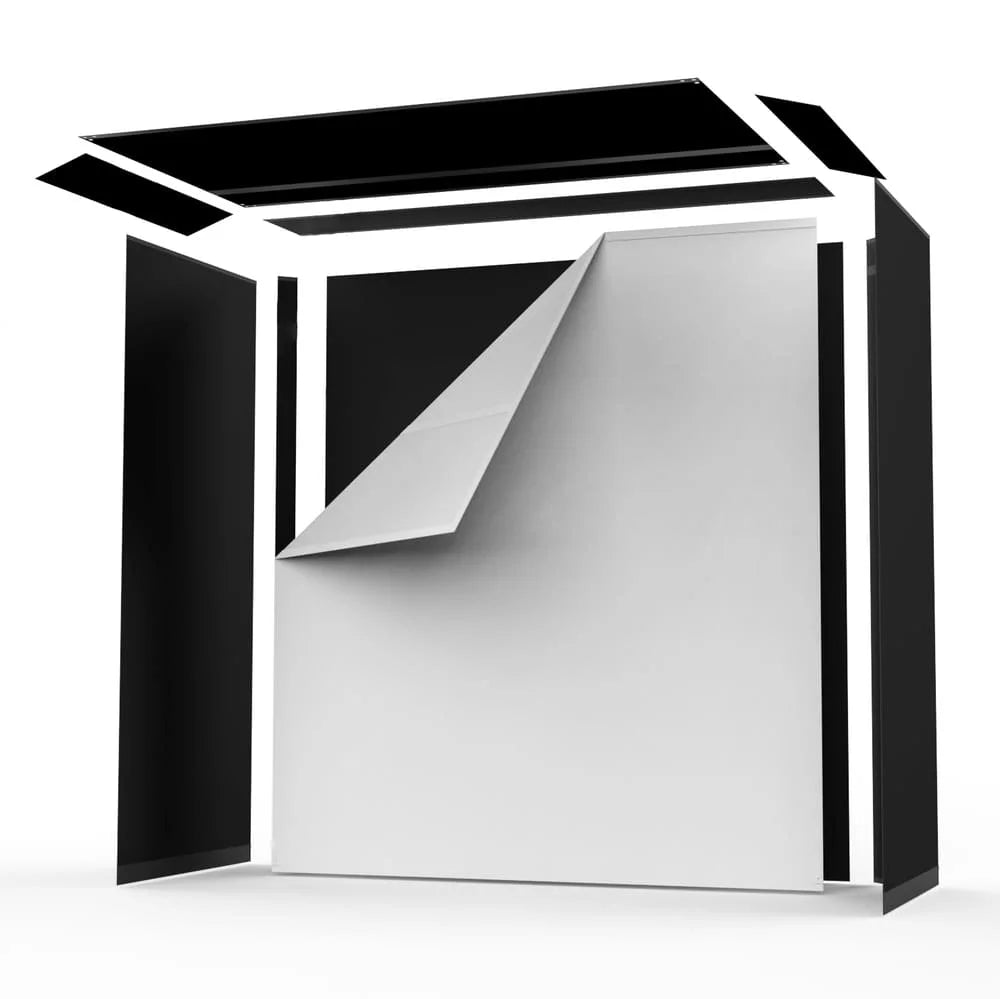

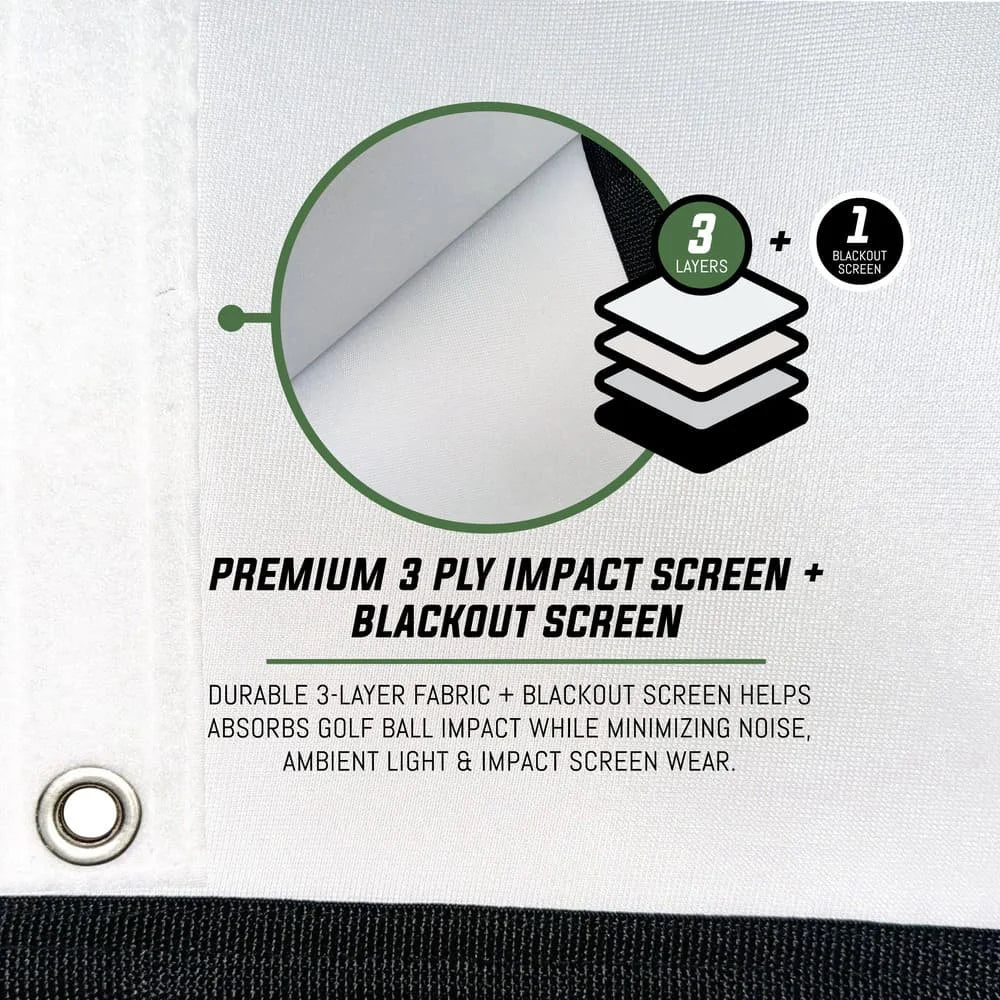

Impact screen
Three-ply screen with a blackout backing
A durable three-layer impact fabric with a blackout screen behind it absorbs the ball while cutting noise, ambient light and screen wear. Models come in 4:3 and 16:9 to match your projector.
- 3-ply impact fabric
- Blackout backing
- 4:3 or 16:9
One room, more than one use

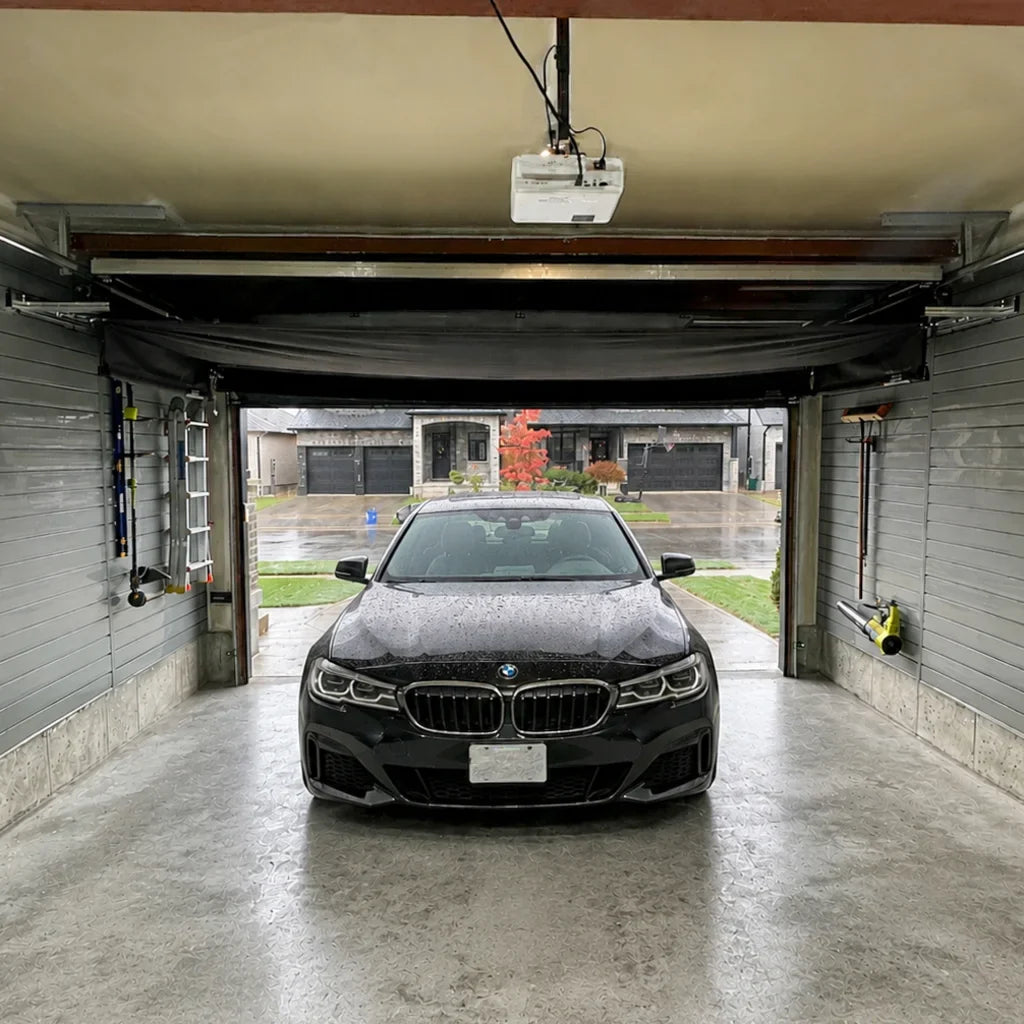

Park the car under it

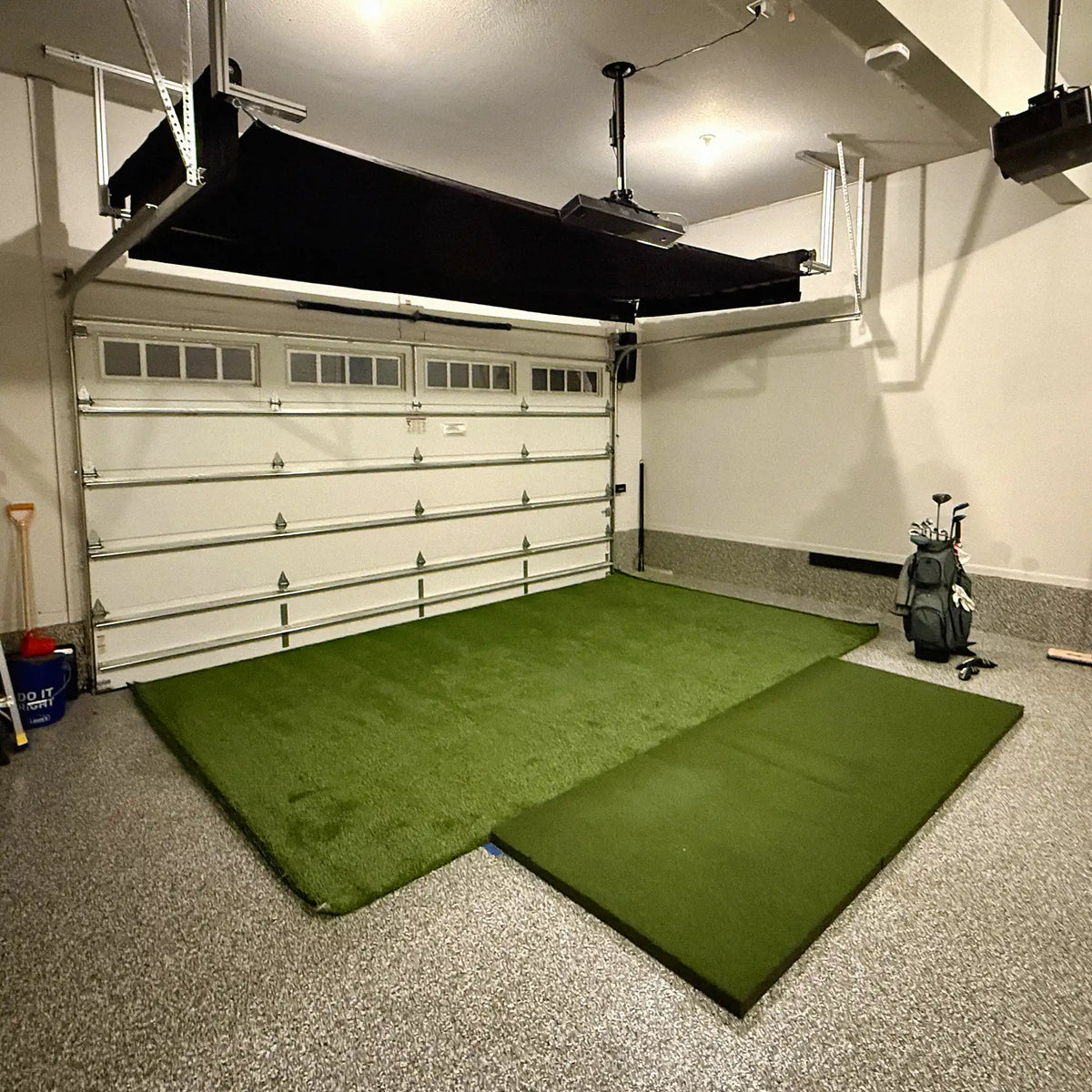

Rolled up, the enclosure sits at the ceiling and the floor is yours again: the car goes back in, or the room is a gym, a cinema or a games room. The screen also works as a projection surface for films and sport.
- Garage, gym or lounge
- Films, sport and gaming on the same screen
The honest comparison
Vanish, or a fixed bay?
An honest look at when a retractable enclosure earns its price and when a fixed SimSpace bay is the better buy.
| Vanish Series | SimSpace Sim 2 (fixed) | SimSpace SLIM (fixed) | |
|---|---|---|---|
| When you are not playing | Rolls up to the ceiling, floor clear | Stays up | Stays up, 1m deep |
| Depth when in use | 1.52m | 1.5m | 1m |
| Room length to allow | From 5.18m (maker’s figure) | About 3m | About 2.5m |
| Ceiling | 2.74–3.2m, taller for H models | 2.5m bay; 2.7m to swing a driver | 2.5m bay; 2.7m to swing a driver |
| How it is fixed | Into ceiling joists or wall studs | Freestanding frame | Freestanding frame |
| Install | Two people; maker recommends a contractor | Push-connect frame | Push-connect frame, 20–30 minutes |
| Screen | 3-ply with blackout backing; 4:3 or 16:9 | 4K Platinum, 3-layer | 4K Platinum, 3-layer, 4:3 |
| Price | from £3,499.99 | £1,349.01 | £999.99 |
The questions everyone asks
Which model fits my room?
Choose by room width and ceiling height. Vanish 11 suits rooms 3.43–3.73m wide, Vanish 13H 3.96–4.34m, and Vanish 16 and 16H 5.03–5.33m. Every model is 1.52m deep when it is down, and the maker suggests a room at least 5.18m long. Send Tom your room and he will confirm the model before you order.
What ceiling height do I need?
The standard models (11 and 16) are made for ceilings of 2.74–3.2m. The 13H is for 3.19–3.65m and the 16H for 3.05–3.51m. The ceiling mounts are height-adjustable and there are wall-mount options, so if your ceiling is lower, send Tom your room before you order and he will tell you honestly whether it works.

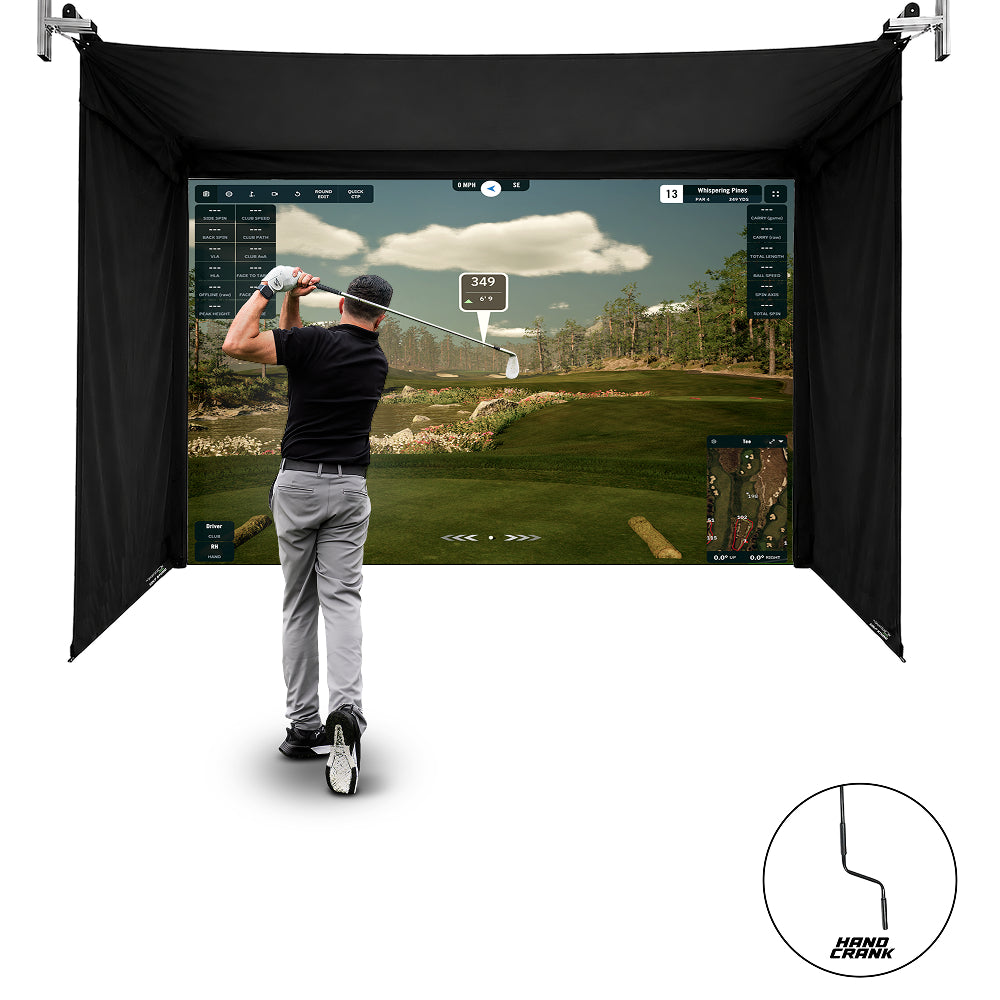

Hand crank or remote control?

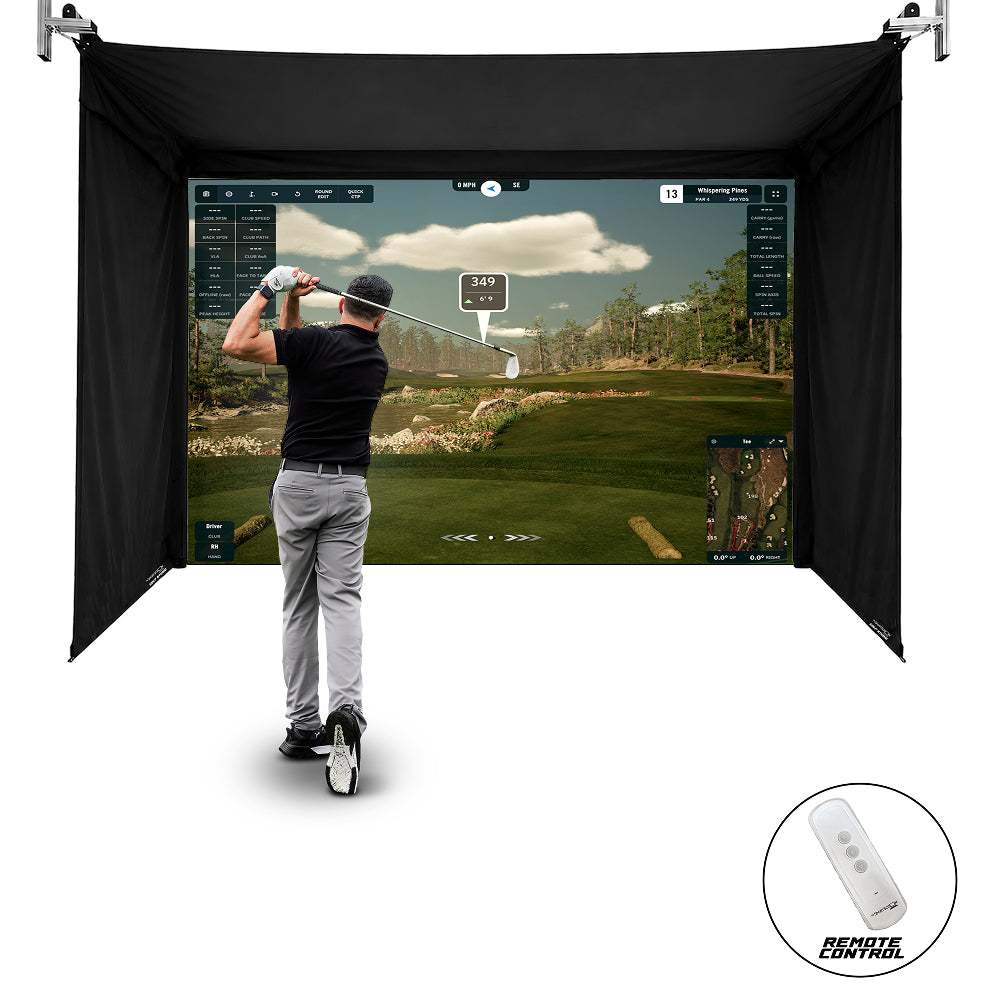

Both roll the whole enclosure away. The hand crank winds it up manually. The remote-control version is motorised: you pair the remote, set the upper and lower stop positions once, and it halts at the right height every time. It needs a mains socket within reach of the housing, and Tom confirms the electrical details with you before you order. The remote version is £1,000 more on every model.
How is it installed?
The roller housing fixes into solid structure, ceiling joists or wall studs, with the brackets supplied. There are two ceiling-mount options, a back-wall mount and a side-wall mount. Assembly needs two people and the manufacturer recommends using a general contractor. Allow 20–30cm clear behind the screen and 15–20cm each side.
What is in the box, and what else do I need?
The impact screen, the side, top and back panels, the wall and ceiling brackets and the owner’s manual. To make it a simulator you add a launch monitor, a projector and a hitting mat, which you can add from the extras on this page.
Can I still use the garage when it is rolled up?
Yes. Rolled up, the enclosure sits at the ceiling and the floor is clear, so the car can go back in or the room can be used for something else.
Which projectors and launch monitors does it work with?
The screens come in 4:3 and 16:9, so choose the model that matches your projector’s picture. It works with the launch monitors we sell. Radar units need 2.4–3m behind the ball, so check your room depth with Tom first.
Can I watch films and sport on it?
Yes. The screen works as a projection surface for films, sport and gaming as well as golf.
