Only 1m deepSIM 0
3.3 × 2.5 × 1m 10'10 × 8'2 × 3'3 ft
Rooms short on length
Screen 3.1 × 2.3m (4:3) · room from 3.56 × 2.80 × 2.70m
White Platinum screen and side netting included
£999.99View SIM 0
SimSpace and GolfBays stockist
Golf simulator enclosures
Every bay we sell, side by side. Seven SimSpace sizes from a 1m-deep bay for short rooms to a 3m full-height studio, a retractable enclosure that clears the garage, and GolfBays frames for clubs and studios, with every dimension shown so you can see the difference before you measure.
- 7 sizesSIM 0 to SIM 6, from 1m deep to 3m tall
- From £999.99the 1m-deep SIM 0 with side netting
- 2.5m or 3m tallstandard or full-height frames
- 20–30 minutesto build with two people
- UK delivery £5per order
Will it fit?
Measure three things, then we'll mark every bay that fits
Width wall to wall, length from the screen wall to the back, and the ceiling at its lowest point. Enter them here and the sizes below light up.
- Width: the frame plus about 8cm clear each side.
- Length: 4.2m for a camera launch monitor, 2.8m with the 1m-deep SIM 0. Radar units need more.
- Ceiling: 2.7m for a full swing, 3m is comfortable. Under that? See what still works.
Will a sim fit my room?
Measure inside the room, in metres. We’ll tell you honestly which size fits.
We usually look for 3.0m wide, 4.2m long and a 2.7m ceiling. Short on length? The 1m-deep SIM 0 works from 2.8m.
Ceiling under 2.7m? It can still work→SimSpace range
Seven sizes, every dimension shown
Sizes are the inside of the frame, width × height × depth, with the screen shape on every bay. Pick a screen on any bay to see its price.
Only 1m deep
SIM 1
2.6 × 2.5 × 1.5m 8'6 × 8'2 × 4'11 ft
Single garages and spare rooms
Screen 2.4 × 2.3m (1:1) · room from 3.00 × 4.20 × 2.70m
£1,299.01View SIM 1
Most popularSIM 2
3 × 2.5 × 1.5m 9'10 × 8'2 × 4'11 ft
Most garages
Screen 2.8 × 2.3m (4:3) · room from 3.26 × 4.20 × 2.70m
£1,349.01View SIM 2
SIM 3
3.6 × 2.5 × 1.5m 11'10 × 8'2 × 4'11 ft
Wider rooms
Screen 3.4 × 2.3m (4:3) · room from 3.86 × 4.20 × 2.70m
£1,400.00View SIM 3
SIM 4
4 × 2.5 × 1.5m 13'2 × 8'2 × 4'11 ft
Double garages
Screen 3.8 × 2.3m (16:10) · room from 4.26 × 4.20 × 2.70m
£1,449.99View SIM 4
SIM 5
3 × 3 × 3m 9'10 × 9'10 × 9'10 ft
High ceilings, a full-depth bay
Screen 2.8 × 2.8m (1:1) · room from 3.26 × 4.30 × 3.10m
£1,599.99View SIM 5
SIM 6
4 × 3 × 3m 13'2 × 9'10 × 9'10 ft
Dedicated sim rooms
Screen 3.8 × 2.8m (4:3) · room from 4.16 × 4.30 × 3.10m
£1,699.99View SIM 6
None of these fit?
Build a bay to your room
Odd-shaped rooms, alcoves and low ceilings get a made-to-measure screen and our help planning the frame around it.
More enclosure options
Retractable, GolfBays and commercial bays
For a garage that still needs the car in it, a different screen, or a room that will see heavy use.
Retractable
SportScreen Vanish Series
Rolls up to the ceiling by hand crank or remote, so the car goes back in the garage. Four sizes, with side screens, a ceiling panel and back protection.
From £3,499.99View
GolfBays
GolfBays SimBox
Seven sizes up to 4 × 3 × 3m with a choice of LITE, PRO+ or Close-Knit Baffle screen.
From £1,161.00View
GolfBays
GolfBays EasySim
An affordable steel-frame bay with side barriers that goes up in under two hours.
From £999.00View
Premium
GolfBays Lux
Blackout side walls, heavy-duty netting and a professional-grade screen for high-end rooms.
From £2,950.00View
Compare
Every SimSpace size at a glance
Room sizes are width × length × height for a camera launch monitor beside the ball.
| Bay | Frame (W × H × D) | Screen | Room from | White Platinum | Grey UltraMAX |
|---|---|---|---|---|---|
| SIM 0 | 3.3 × 2.5 × 1m | 3.1 × 2.3m 4:3 | 3.56 × 2.80 × 2.70m | £999.99 | Not made |
| SIM 1 | 2.6 × 2.5 × 1.5m | 2.4 × 2.3m 1:1 | 3.00 × 4.20 × 2.70m | £1,299.01 | £1,499.99 |
| SIM 2 | 3 × 2.5 × 1.5m | 2.8 × 2.3m 4:3 | 3.26 × 4.20 × 2.70m | £1,349.01 | £1,549.99 |
| SIM 3 | 3.6 × 2.5 × 1.5m | 3.4 × 2.3m 4:3 | 3.86 × 4.20 × 2.70m | £1,400.00 | £1,599.99 |
| SIM 4 | 4 × 2.5 × 1.5m | 3.8 × 2.3m 16:10 | 4.26 × 4.20 × 2.70m | £1,449.99 | £1,649.99 |
| SIM 5 | 3 × 3 × 3m | 2.8 × 2.8m 1:1 | 3.26 × 4.30 × 3.10m | £1,599.99 | £1,799.99 |
| SIM 6 | 4 × 3 × 3m | 3.8 × 2.8m 4:3 | 4.16 × 4.30 × 3.10m | £1,699.99 | £1,899.99 |
The outer frame is about 10cm bigger each way: 2.6m tall for SIM 0 to SIM 4 and 3.1m for SIM 5 and SIM 6.
Choose your screen
White for dark rooms, grey for rooms with light
White Platinum
A 3-layer impact screen with a foam centre layer that soaks up the strike and quietens it. The brightest picture in a room you can make dark. Comes on every size.
Grey UltraMAX
The same 3-layer build in a grey face that holds contrast when a window, skylight or garage door lets light in. Made for SIM 1 to SIM 6.

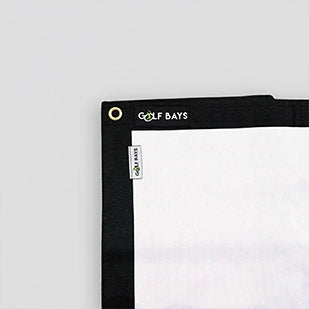

Already have an enclosure? We stock replacement Platinum screens and UltraMAX screens for SIM 1 to SIM 6.
In the box
Everything for the bay, nothing to source
- Steel frame of push-connect poles, padded with foam tubes
- Black velour side and ceiling panels that keep light off the screen
- Impact screen in white Platinum or grey UltraMAX
- Bungee cords and Velcro straps that tension the screen
- Step-by-step guide for a 20 to 30 minute build with two people
Finish the bay
Add-ons that fit every SimSpace enclosure

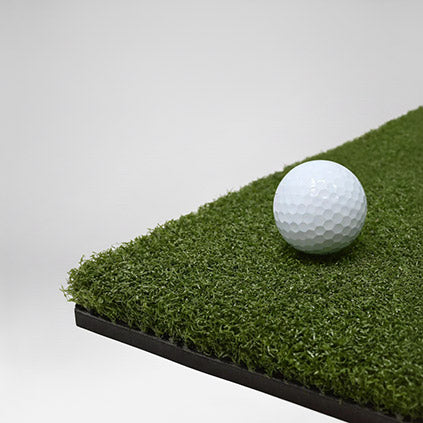

Hitting matA 1.5 × 1.5m mat to stand on in front of the screen. £199.99

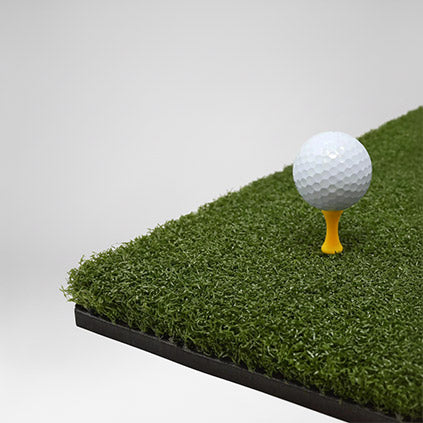

Tee Turf matRealistic turf that takes real golf tees. £289.99

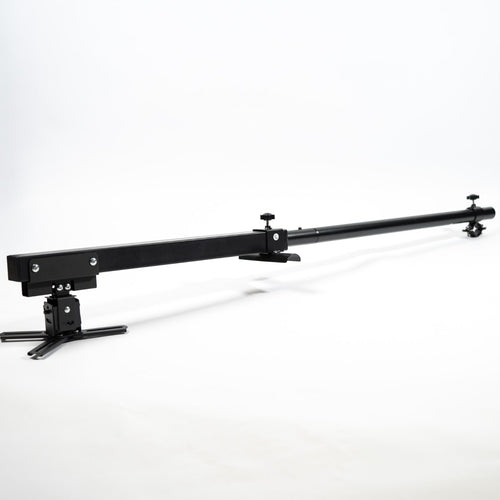

Projector armHolds the projector on the enclosure frame, with nothing fixed to the room. £299.00
Floor projector caseA steel case for a projector on the floor, in front of or beside the ball. £189.99

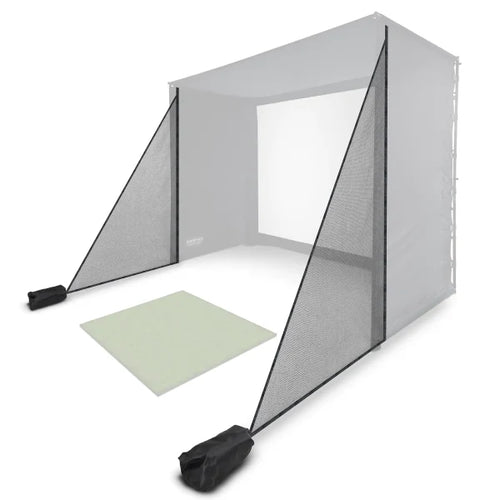

Side nettingExtra cover each side of the bay for mishits. £99.99

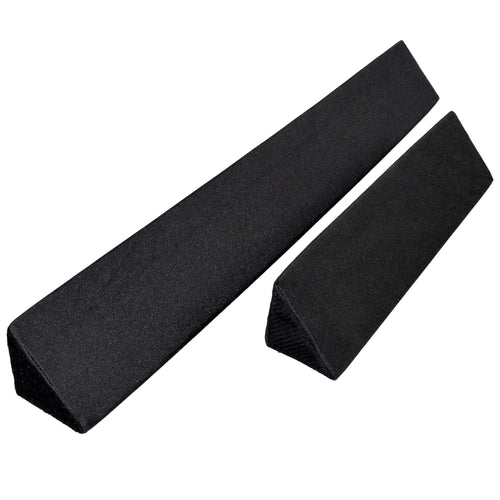

Bumper packCushions the base bar so balls never strike the metal.From £129.99
Want the whole simulator?Our packages pair an enclosure with a launch monitor, projector and mat at one price.
See packages
Questions
What people ask before they choose
What size golf simulator enclosure do I need?
Measure the room's width, length and ceiling height. Each bay needs its own frame width plus about 8cm clear each side, at least 4.2m of length for a camera launch monitor (2.8m for the 1m-deep SIM 0) and 2.7m of ceiling for a full swing. The room checker on this page does the sums for you and marks every size that fits.
Can I have an enclosure with a low ceiling?
SIM 0 to SIM 4 stand about 2.6m tall, so 2.7m is the honest minimum for a full driver swing and 3m is comfortable. Below 2.7m most golfers can still hit irons and wedges. Our experts can look at your room and tell you what will work.
Should I choose the white Platinum or grey UltraMAX screen?
Both are 3-layer impact screens with a foam centre and use the same frame. White Platinum gives the brightest picture in a dark room. Grey UltraMAX holds contrast better when there is some light in the room, from a window or a garage door. UltraMAX is made for SIM 1 to SIM 6.
How long does an enclosure take to put up?
Two people can build a SimSpace enclosure in around 20 to 30 minutes. The frame uses push-connect steel poles with foam padding, and the screen is tensioned with bungee cords and Velcro straps.
Will it work with my launch monitor?
Yes. Every enclosure here works with camera units beside the ball, like the Garmin Approach R50, and overhead units. Radar launch monitors sit behind the golfer and need a longer room: about 5.2m for a FlightScope Mevo Gen2 and 5.85m for a Full Swing KIT.
Is a hitting mat included?
The enclosure price is for the bay itself. You can add a Standard or Tee Turf mat on the product page, or choose a complete package with the launch monitor, projector and mat together.
I need my garage for the car. What are my options?
The SportScreen Vanish Series rolls up to the ceiling when you are not playing, so the car can go back in.
How much is delivery?
UK delivery is £5 per order.
Free 3D room design
Not sure which bay? Send us your room.
Send us your measurements and a photo on WhatsApp. Our experts will draw your room in 3D with the bay that fits, and tell you plainly if something won't work.
