You will need these
GolfBays Bungee Cords (Pack of 20)
A bungee through each eyelet and round the frame.
- Pack of 20 with a carry bag
£19.99
Made to measure
Made-to-Measure Golf Simulator Impact Screen
For a frame you have built yourself, where no stock size fits. GolfBays makes the screen to your exact size, in the Reversible PRO dual-layer fabric or the fibre-bonded Pro+, with eyelets round the edge to fix it to the frame with bungee cords.
Priced by quote, to your exact size
- Screen size = frame width minus 20cm, frame height minus 10cm
- Choose Reversible PRO (turn it round when one side wears) or Pro+ (ultra-quiet, 4K-ready)
- We confirm the price and the lead time before it goes into production
Your size and price
Enter your frame, choose the screen, send it
Measure inside the frame. We work out the screen size, and your message to our experts carries the frame size, the screen size and the screen you chose. Prefer a stock size? The sizes that fit are highlighted below the form, each with its live price.
Step 1 · Measure
Your frame's inside opening
Measure inside the frame: from upright to upright, and from the floor to the underside of the top bar. The screen needs 10cm clear of the frame at the top and on both sides, so it hangs flat and the ball never hits the frame.
cm
cm
Enter your frame size to see the screen you need, and every stock size that fits.
Made to measure
A screen cut to your frame
When no stock size fits, GolfBays makes the screen to your exact size, with eyelets round the edge for bungee cords. Choose the screen, then send us the size for a price.
Your screen size: enter your frame first. Made-to-measure screens are priced by quote, and we confirm the lead time before it goes into production.
Stock screens that fit your frame, ready to buy
Every stock screen size, with its price
Sizes are width × height. Tap a size to buy it.
GolfBays Pro+Fibre-bonded, ultra-quiet, 4K-ready; eyelets for bungees
SimSpace PlatinumThree layers with an impact-absorbing foam centre; 4K
SimSpace Double SidedReversible two-layer screen; edge eyelets for bungees
SimSpace EliteSingle-layer, tight-knit polyester, rated for 4K; edge eyelets
The fit
Why 10cm, and what else to leave
10cm
Clear at the top and both sides
The screen hangs inside the frame with 10cm to spare at the top and each side, so the bungees can tension it flat and a ball never hits the frame. A 370 × 270cm frame takes a 350 × 260cm screen.
30cm
Free space behind the screen
Leave at least 30cm between the screen and the wall behind it, so the screen can give when the ball hits it.
1 per eyelet
Bungee cords
Loop a bungee through each eyelet and round the frame, with even tension on every side. Bungees are sold separately in packs of 20.
Two screens
Reversible PRO or Pro+
| Reversible PRO | Pro+ | |
|---|---|---|
| Fabric | Dual-layer woven polyester, the same premium fabric on both sides | Fibre-bonded material for impact absorption |
| Picture | High-definition projection on both sides | High-resolution surface, 4K-ready |
| Noise | Minimal bounce-back and noise | Ultra-quiet strike, suited to shared or residential spaces |
| Life | Reversible: turn it round when one side shows wear | Built for repeated commercial use at ball speeds over 250mph |
| Fixing | Eyelets round the edge, bungee cords sold separately | Eyelets round the edge, bungee cords sold separately |
| Warranty | Confirmed with your quote | 12 months |
A made-to-measure golf simulator impact screen for a frame you have built yourself, in timber, steel or angle iron, where no stock size fits. GolfBays makes it to your exact size in one of two screens:
- GolfBays Reversible PRO: dual-layer woven polyester with the same premium fabric on both sides, so you can turn it round when one side shows wear. Sharp HD picture, minimal bounce-back and noise.
- GolfBays Pro+: fibre-bonded material for impact absorption, an ultra-quiet strike for shared or residential spaces, a 4K-ready surface, built for repeated commercial use at ball speeds over 250mph, with a 12-month warranty.
Sizing your screen
Measure the inside opening of your frame. The screen is the frame width minus 20cm and the frame height minus 10cm, so it sits 10cm clear of the frame at the top and on both sides. For example, a 370 × 270cm frame takes a 350 × 260cm screen. Leave at least 30cm of space behind the screen.
Fixing

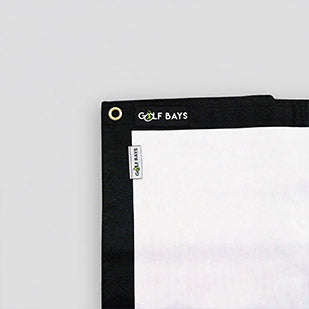

Eyelets run round the edge. Loop a bungee cord through each eyelet and round the frame, with even tension on every side. Bungee cords are sold separately in packs of 20.
Price and lead time
Made-to-measure screens are priced by quote: send us your frame size on WhatsApp or by the contact form. We confirm the price and the lead time with you before it goes into production. Need a screen today? Every stock size we sell is listed on this page with its price.
You'll also need
To fix it and protect the room
Covers 5m²
Premium Wall Foam Tiles Bevelled (Pack of 10) Black 1.0m x 0.5m
High-density foam tiles for the walls beside the screen.
- Absorbs ball-strike noise
£240.00
DIY Golf Simulator Impact Screen Pelmet Kit – Black Foam Edge Border
A black foam border that dresses the screen edges.
- Conceals the mounting hardware
From £340.0012 sizes
Ceiling or wall
Universal Golf Simulator Projector Mount
Fits most projectors, with angle and tilt adjustment.
£39.99
Building the whole bay yourself?Every part, step by step: screens, padding, launch monitors, PCs and projector mounts
→
