Garmin Approach^® R50 Room Requirements UK: Ceiling Height, Depth and Garage Fit (With Real Setups)

The Garmin Approach® R50 needs a room at least 3.0m wide and 4.2m long with a 2.7m ceiling (3m or more is ideal), and nothing behind you, because its cameras sit beside the ball — no space needed behind you, unlike radar units. Most UK single garages qualify. Before buying, take a few full driver swings in the space; we’ll design your room free in 3D.

That is the short answer, and if you only remember one thing from this page, make it the driver-swing test at the end of that paragraph. Below is the long answer: the exact numbers I work to when we design R50 rooms for customers, where those numbers come from, and two common room problems — including a sub-2.7m garage ceiling that shows precisely where the limit sits.

The numbers I work to

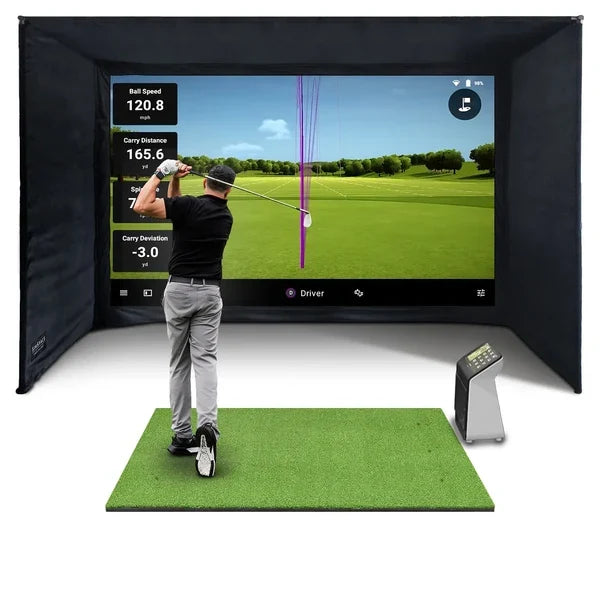

“Will it fit my room?” is the single most common pre-sales question I answer on WhatsApp, so these are the figures I quote every week. They apply to the Garmin Approach® R50 on its own and to the Garmin Approach® R50 golf simulator package with enclosure, screen and projector.

One important honesty note: Garmin publishes no official ceiling-height figure for the R50. The 3m-or-more ideal and 2.7m recommended minimum are our own advice line from designing and fitting these rooms, and they match the real-world consensus among owners — the Garmin owners’ forum threads on R50 room dimensions and PlayBetter’s space-requirements guide both land on roughly 2.75m (9ft) for a full driver swing.

Where the Approach^® R50 actually sits (this is why short rooms work)

The R50 is a camera-based (photometric) launch monitor. Garmin’s own manual specifies placing it about 1.5ft — half a metre — to the side of the tee, level with the ball. Nothing sits behind you, and nothing sits in the ball flight.

Compare that with radar. A Garmin R10 or FlightScope Mevo needs roughly 2.4m of clear space behind the ball before you even count your hitting position and ball flight, which is why radar rooms realistically start at about 4.6m (R10) to 5.2m (Mevo Gen 2). The R50’s cameras read the ball at impact, so it does not need flight distance to measure. The result: our 4.2m minimum room length works for the R50, with the ball 2.5m from the screen, and rooms that fail the radar test pass comfortably here.

Ceiling height: the honest answer

Ceiling height is the least negotiable number in the whole project, because it is the one you cannot buy your way around. Here is how I advise customers to think about it:

3m or more is ideal. I am 6'1" and hit driver comfortably under 2.8m.

2.7m is the practical minimum for driver. Most adults can swing a full driver under 2.7m, but taller players with steeper swings start to feel it. This is where the driver-swing test earns its place: stand in the actual space and make a few slow, full driver swings. If the clubhead brushes nothing, you are fine. It is a five-minute check that can save you from a £7k mistake — in both directions.

Below 2.7m, plan an irons-and-wedges room. This is not a consolation prize. Wedges and mid-irons are where most amateurs actually gain strokes, and the R50 measures them beautifully at any sensible ceiling height. But we will tell you the driver limitation before you order, not after.

For general planning beyond the R50, our golf simulator room size guide covers the same questions across every launch monitor type we sell.

Two common room problems

The 2.59m garage

A common case: an R50 room in a garage with a 2.59m ceiling — 11cm under our recommended minimum. We say exactly that rather than talking around it, and the plan reflects it: the room works brilliantly for irons and wedges from day one, and driver gets settled by the swing test in the actual space, not by a spec sheet. Some players swing flat enough to get away with 2.59m; some don’t. What we would never do is promise a stranger on the internet that they can. If your ceiling is in that 2.5–2.7m band, treat driver as a maybe, verify it with the test, and buy with the irons-and-wedges case as your baseline.

The tight-ceiling room and the projector

Another common case is a room with usable swing height but nowhere sensible to ceiling-mount a projector without it either fouling the swing or sitting too close to the screen. The usual fix is an enclosure-mounted projector arm: the projector hangs off the enclosure frame itself, needs no ceiling fixings, and stays out of the swing path. It is a standard option we design in when the ceiling is tight, and because it is a normal HDMI projector, that same screen doubles as the family movie screen — a genuinely common request in the rooms we design.

Will it fit a UK garage?

Depth is almost never the problem in a garage — a typical single garage of about 5m is longer than the 4.2m the R50 room needs, precisely because nothing has to sit behind you. The two numbers that decide a garage build are:

Ceiling. Garage ceilings vary enormously in the UK, from generous pitched roofs to low-slung 2.2m flat ceilings that rule out driver entirely. Measure yours at the point where you would stand, not at the highest point.

Width. Width sets which enclosure footprint fits. The R50 room package with projector is built around the SimSpace enclosure range, which comes in several footprints from slim single-garage widths upwards, so a narrow bay usually changes the enclosure choice rather than killing the project.

And if a room genuinely will not work, the R50 has an escape hatch most launch monitors do not: because it needs no space behind the ball, it also works inside a 3m garden practice cage, with the whole simulator experience running on its built-in touchscreen. No PC, no projector, no room required.

Check your room before you spend anything

Three free ways to get a definitive answer on your exact space, in increasing order of detail:

1. Ask Tom for a quick room check. Tap Ask Tom for live chat or WhatsApp, give your length, width and ceiling height, and we will tell you straight what works, R50 or otherwise.

2. Message me on WhatsApp. Send your room dimensions and I will give you a straight answer, including “don’t buy this” if that is the truth.

3. Get a free 3D design of your actual room. Send dimensions and we produce a 3D CAD render of your specific room with the enclosure, screen, projector and R50 placed and measured — the same drawing we build every installation from. No charge, no obligation.

Garmin Approach^® R50 room requirements: FAQ

Is a 2.4m ceiling high enough for the Garmin Approach^® R50?

Not for a full driver swing — 2.4m is well under our 2.7m recommended minimum and we will not pretend otherwise. It can still make an excellent irons-and-wedges simulator room, and the R50 itself works perfectly at that height. Do the slow driver-swing test in the space before ruling anything in or out.

How much space does the Approach^® R50 need behind the ball?

None. Garmin’s manual places the R50 about 0.5m (1.5ft) to the side of the tee, level with the ball. That is the fundamental difference from radar units like the R10 or Mevo, which need roughly 2.4m behind the ball, and it is why the R50 fits rooms and garages that radar cannot.

What total room size do I need for the full Approach^® R50 simulator package?

Our minimum is 3.0m wide, 4.2m long and 2.7m high, and 3m or more of ceiling is ideal for driver. The enclosure in the package comes in multiple footprints — send us your dimensions and we will confirm against the exact enclosure sizes before you order.

Can I use the Garmin Approach^® R50 in a garden cage instead of a room?

Yes, and it is one of the best low-ceiling workarounds there is. The R50 sits beside the ball, needs no PC, and runs its simulation on the built-in touchscreen, so a standard 3m garden cage becomes a full outdoor simulator — something physically impossible with a radar unit in that footprint.

The verdict

The R50 is the most room-friendly launch monitor at this level: no space needed behind you, a 4.2m-long room, and the only hard gate is ceiling height — 3m or more ideal, 2.7m our advised minimum for driver, and an honest irons-and-wedges plan below that. Measure the ceiling where you stand, do the slow driver-swing test, and then let us check your numbers properly before any money moves. The only wrong way to buy a simulator is unmeasured.
